Product introduction

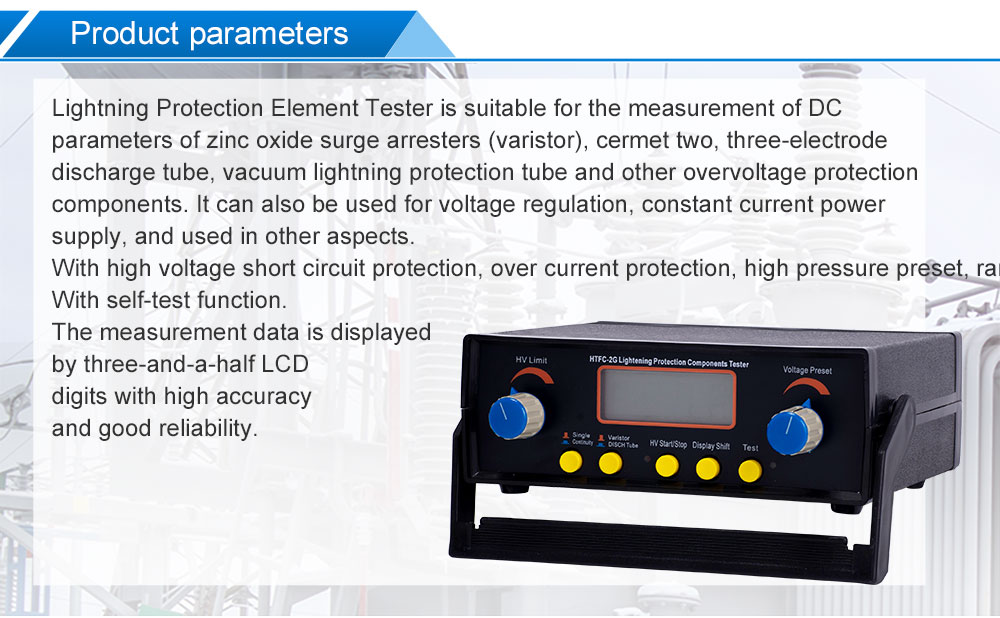

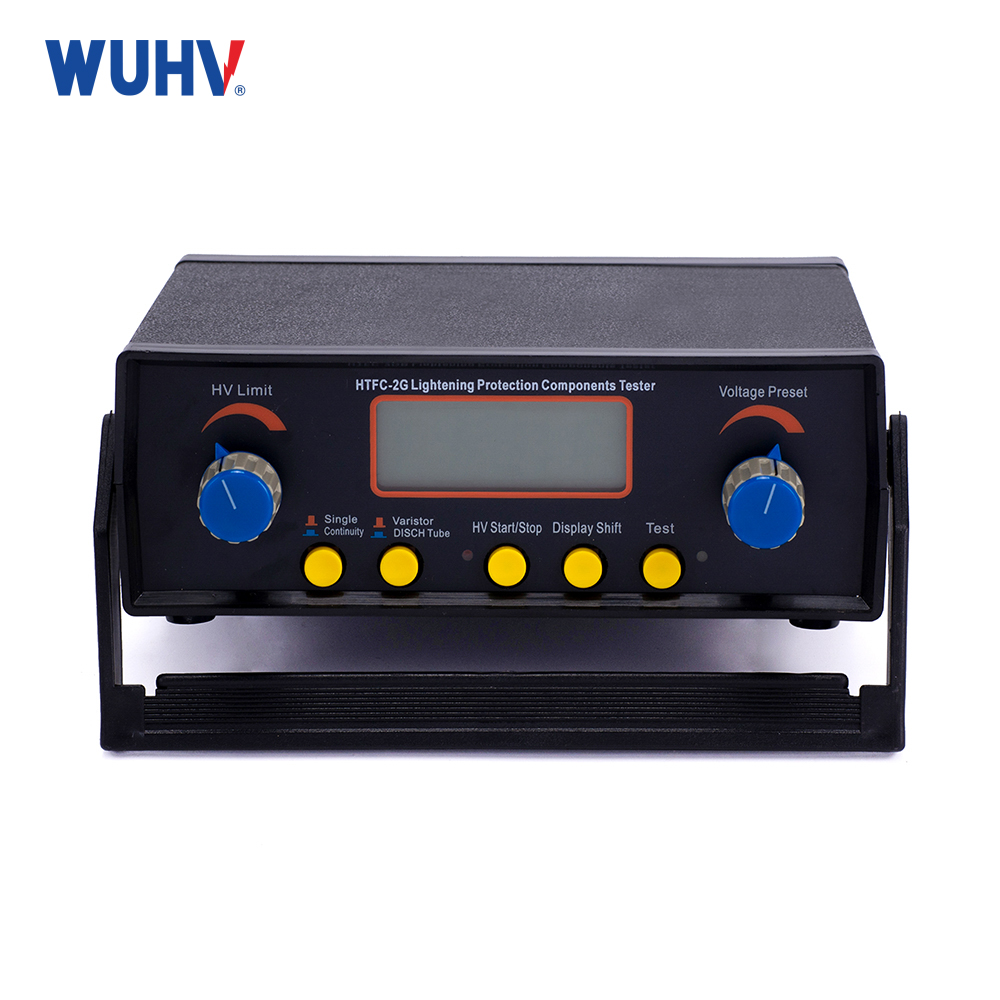

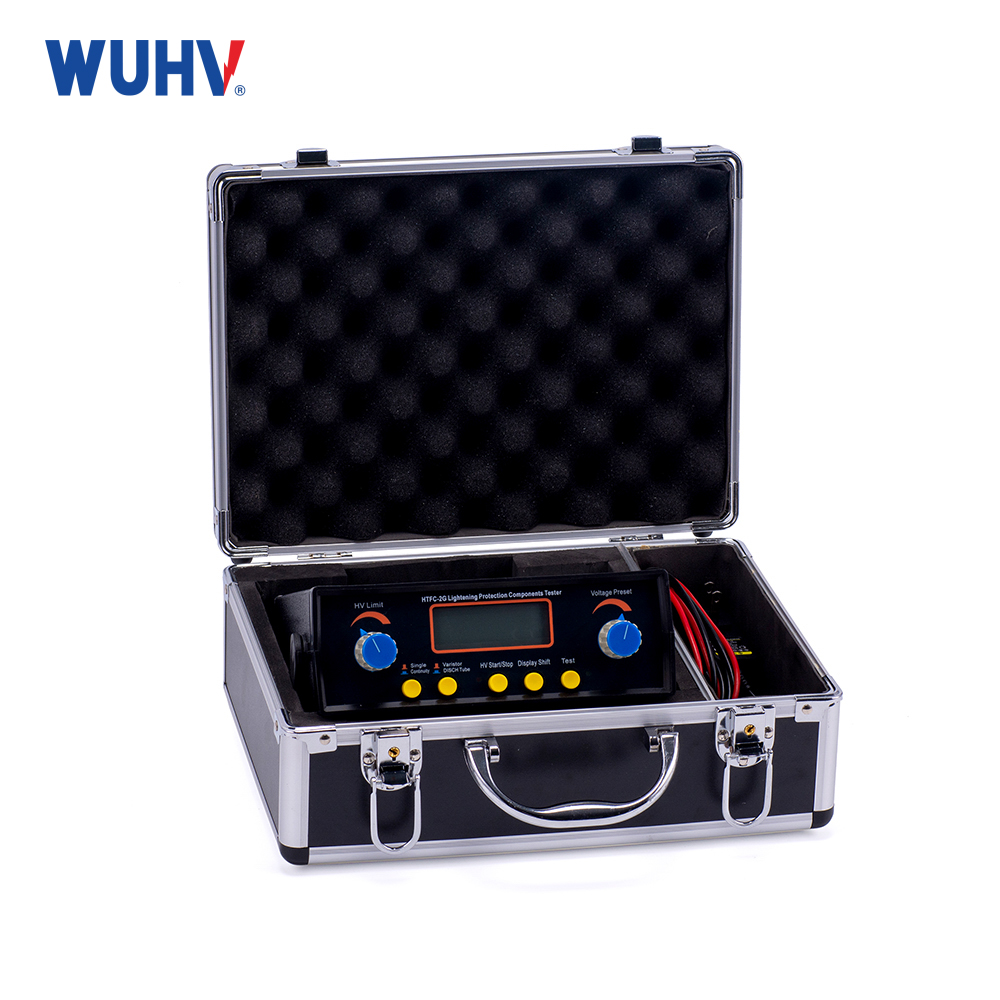

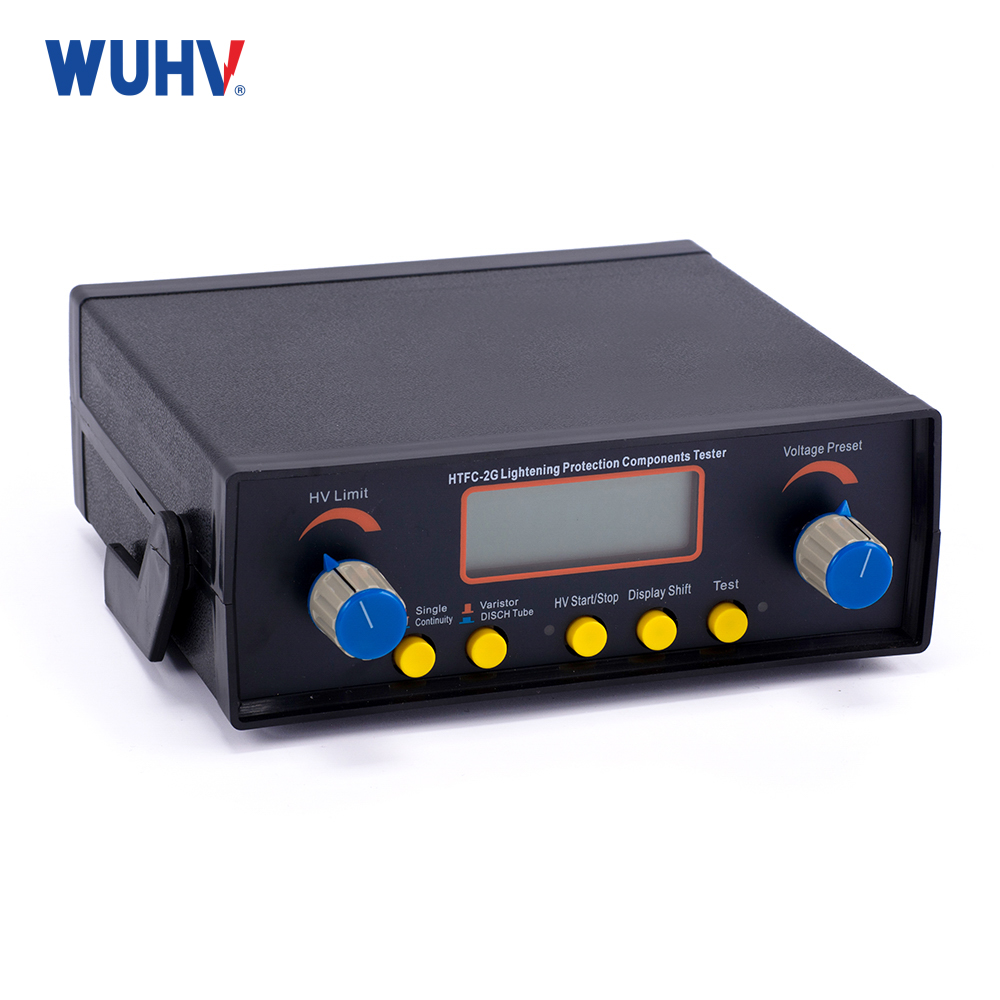

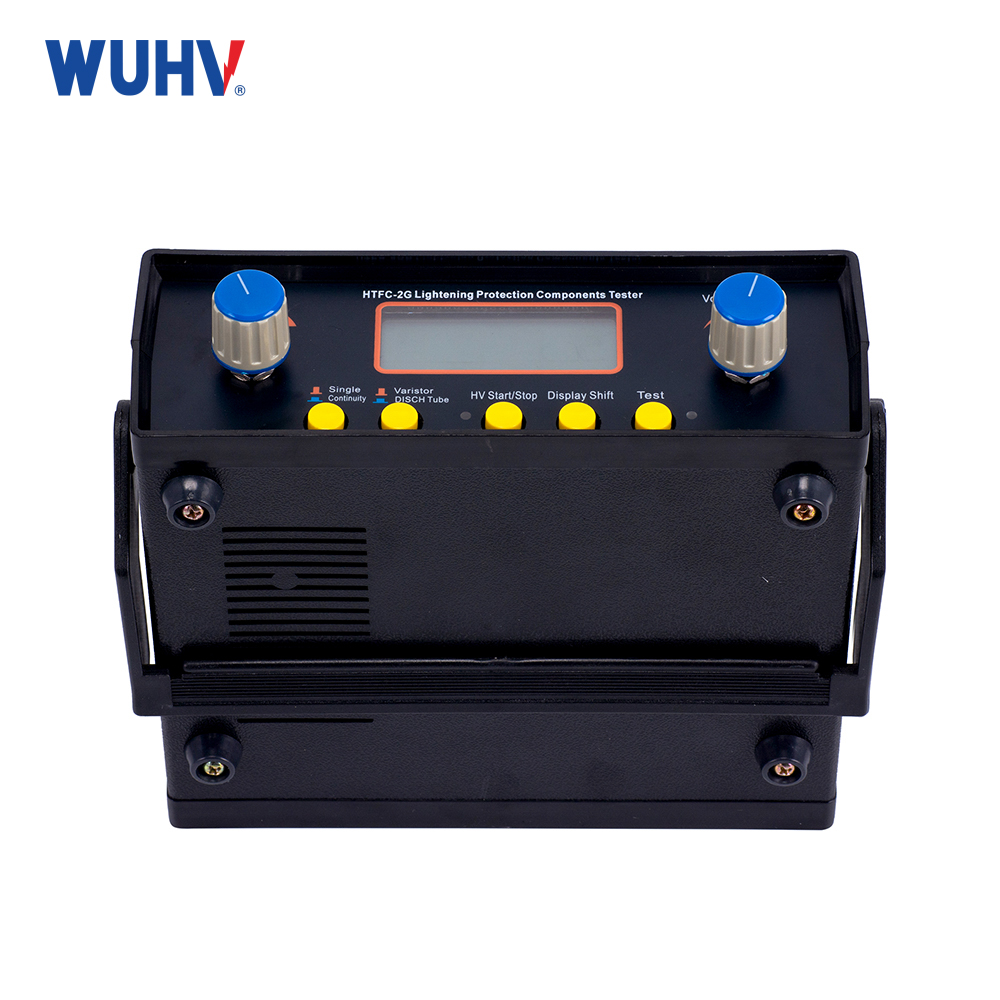

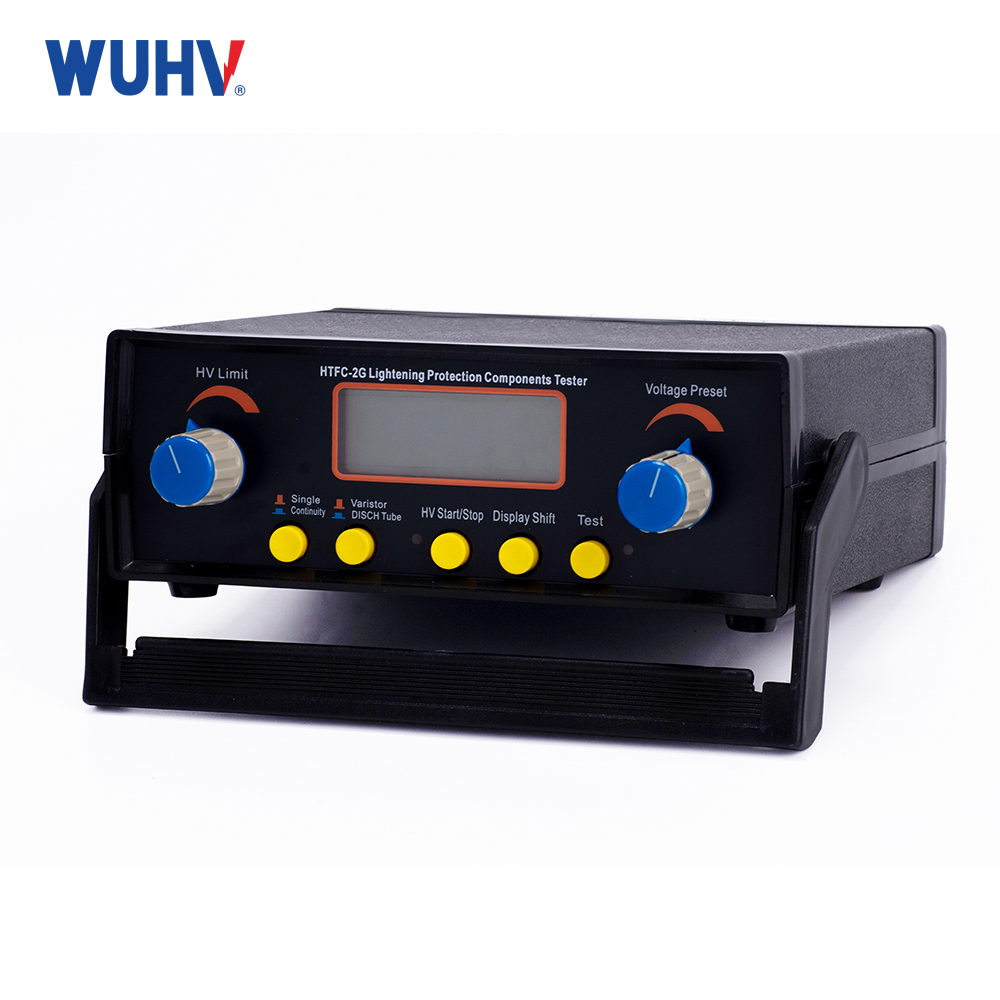

The FC-2G Lightning Protection Component Tester is a portable, high-precision DC parameter testing device for lightning protection and overvoltage protection components. It is mainly used to test key electrical parameters of zinc oxide varistors (MOV), zinc oxide surge arresters, metal-ceramic two-electrode/three-electrode spark gaps, vacuum surge arresters, and other overvoltage protection components.
The instrument employs high-voltage output, digital measurement, and intelligent protection technology. It can perform tests on parameters such as the 1mA reference voltage (U1mA) of zinc oxide varistors, leakage current at 0.75U1mA, and DC breakdown voltage of spark gaps. It also supports functions including test range presetting, range adjustment, continuous measurement, and automatic calibration, making it suitable for laboratory testing, production line quality control, incoming inspection, and on-site maintenance applications.
Product functions
Zinc oxide varistor testing
Measures the 1mA reference voltage (U1mA)
Measures the leakage current at 0.75U1mA
Spark gap DC breakdown voltage testing
Supports two-electrode spark gap testing
Supports three-electrode spark gap testing
Supports testing of vacuum surge arresters and other components
High-voltage output function
Capable of performing high-voltage testing
Supports high-voltage presetting
Range adjustment function
Selects appropriate test range based on the component under test
Continuous testing function
Supports continuous measurement
Suitable for batch testing of lightning protection components
Product Parameters
Varistor measurement
| Technical index | Measuring range | Maximum error | Test Conditions |
| Starting action voltage(U1mA) | 0～1700V | ≤±2%±1d | 1mA±5μA |
| Leakage current (I0.75U 1mA) | 0～199.9μA | ≤±2μA ±1d | 0.75 U1mA |
Discharge tube measurement
| Technical index | Measuring range | Maximum error | Test Conditions |
| DC breakdown voltage(Vsdc) | (20～1700)V | ≤±2%±1d | Voltage rise rate：100V/S±10% |
Other parameters
| Insulation resistance | 6MΩ(500V) |
| Withstand voltage | AC1.5kV 50Hz 1min |
| Working temperature and humidity | 0～＋40℃，≤85%RH |
| Store temperature and humidity | －10℃～＋50℃，≤90%RH |
| power supply | DC15V dedicated power supply |
| Power | 8W |
| Instrument diemension | 208×190×78mm3 |
| Weight | ≤1kg |
Nickname：Lightening Protection Components Meter，Lightening Protection Meter
Feature:
1. Applies to test the DC parameters of Oxide Zinc arrester (voltage dependent resistor), cermet second, third electrode discharge tube, vacuum lightning tube and others over voltage protection components. It also can be considered as regulated power supply and constant current power supply.
2. With HV short circuit protection, over current protection, high voltage preset, range adjustment functions, HV self discharge time less than 0.5 second.
3. With self calibration function.
4. LCD display, high precision, strong reliability.
5. Pre-set the measurement range when testing, there will be sound alarm if exceed the measurement range.
6. Choose continuous measurement can make continuous test for mass measured equipments.
7. Panel function is simple, easy to operate.
8. Light in weight, easy to carry.
Application Scenarios
Lightning protection component manufacturers
Factory testing of zinc oxide varistors
Production process testing of surge arresters and spark gaps
Product quality control and batch testing
Power systems
Testing of lightning protection equipment in substations
Testing of line surge arresters
Testing of overvoltage protection components in power equipment
Power equipment maintenance and servicing
Lightning protection engineering companies
Component testing after lightning protection device installation
Lightning protection system maintenance and periodic inspection
On-site fault diagnosis
Electrical equipment manufacturers
Incoming inspection of varistors, spark gaps, and other components
Performance testing of overvoltage protection devices
Product development and quality control
Laboratories and research institutions
Electrical parameter testing of lightning protection components
R&D testing of new lightning protection components
Product performance analysis and comparative testing
FAQ about Lightening Protection Components Meter
Q: What products are the FC-2G mainly used to test?
A: It is mainly used to test lightning protection and overvoltage protection components such as zinc oxide varistors, zinc oxide surge arresters, two-electrode spark gaps, three-electrode spark gaps, and vacuum surge arresters.
Q: Is the testing process safe?
A: The instrument is equipped with high-voltage short-circuit protection, overcurrent protection, high-voltage presetting, and automatic discharge functions. After testing is completed, the high voltage can be rapidly discharged to enhance operational safety.
Q: What preparation is required before testing?
A: Before use, confirm that the instrument is in normal working condition, and select the appropriate test function, test range, and test conditions based on the type of component under test. Before performing high-voltage testing, confirm that the wiring is correct and ensure proper safety protection measures are in place.
Q: Can the FC-2G be used as a production line testing device?
A: Yes. Because it supports continuous measurement and can test a variety of lightning protection components, it is very suitable for quality control and batch testing during the production process.
Looking for a reliable Lightning Protection Components Meter manufacturer and supplier? Wuhan UHV Power Technology Co., Ltd. is a professional manufacturer and supplier of high-voltage power testing equipment in China, providing the FC-2G Lightning Protection Components Meter for accurate testing of zinc oxide varistors, surge arresters, spark gaps, and other overvoltage protection components. With competitive FC-2G price, professional technical support, reliable product quality, and flexible supply options, we can provide suitable testing solutions for laboratories, electrical equipment manufacturers, power companies, and lightning protection system providers. Contact us for the latest price, product specifications, and quotation.
