A complete set of testing equipment for frequency conversion series resonance? Wuhan UHV specializes in the production of series resonance, with a wide range of product selection and professional electrical testing. To find series resonance, choose Wuhan UHV.
The complete set of frequency conversion series resonance test device applies the principle of series resonance. By adjusting the output frequency of the frequency conversion controller, the inductance L of the reactor in the circuit and the capacitance C of the test sample undergo series resonance. The resonance voltage is the voltage applied to the test sample.
The complete set of variable frequency series resonance test device is also known as the variable frequency series resonance AC withstand voltage test device, variable frequency resonance, variable frequency series resonance, series resonance, frequency modulation series resonance, series resonance withstand voltage test device, series resonance test equipment, cable withstand voltage test device, power frequency withstand voltage test device, high-voltage cross-linked cable AC withstand voltage test equipment, AC withstand voltage test device, frequency modulation series resonance AC withstand voltage test device, AC series resonance, variable frequency resonance, series resonance test device, series resonance withstand voltage device, GIS AC withstand voltage test device, motor power frequency (AC) withstand voltage test device, transformer power frequency (AC) withstand voltage test device, etc.

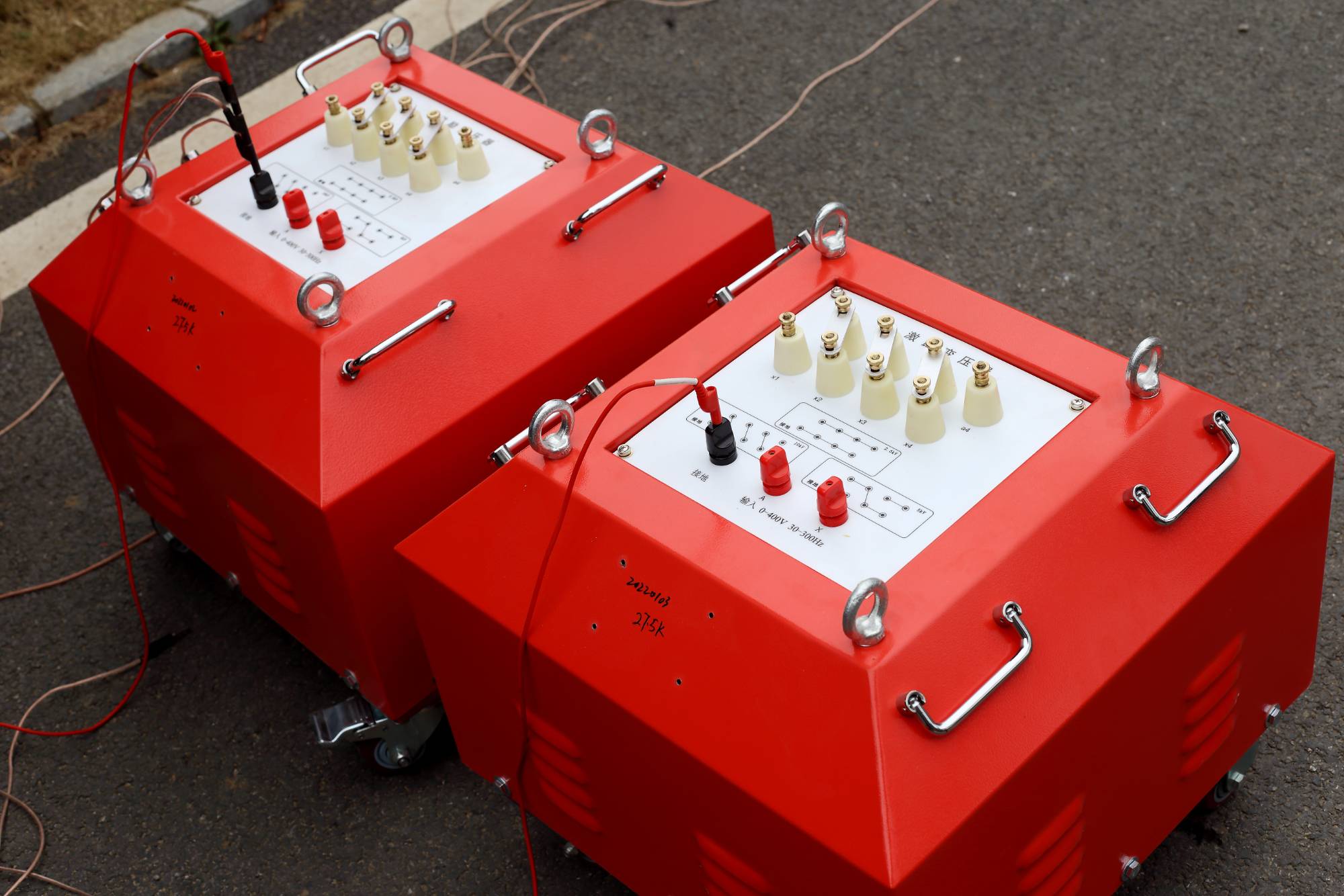

The complete set of variable frequency series resonance test device applies the principle of series resonance, uses an excitation transformer to excite the series resonance circuit, and adjusts the output frequency of the variable frequency controller to cause series resonance between the reactor inductance L and the sample capacitance C in the circuit. The resonance voltage is the voltage applied to the sample. The frequency conversion resonance test device is widely used in industries such as power, metallurgy, petroleum, and chemical engineering, and is suitable for the handover and preventive testing of high-capacity, high-voltage capacitive specimens.
Main features of the complete set of variable frequency series resonance test device
1. Small size and light weight, suitable for on-site use
The variable frequency controller integrates voltage regulation, frequency modulation, control, and protection functions, eliminating the need for bulky voltage regulators, and is easy to operate with intuitive readings. Due to the high q-value of the system (30-120), it effectively solves the constraints of insufficient power capacity on on-site testing. When the voltage level is high, the reactor adopts a multi-stage or stacked structure, which is convenient for use, transmission, and on-site installation.
2. High installation reliability
The complete set of variable frequency series resonance test equipment adopts advanced design ideas, high-quality IGBTs and drive circuits to reduce output waveform distortion, improve frequency output stability, and has good IGBT, overcurrent, overvoltage (protection values can be manually adjusted according to needs), and discharge protection functions, which can protect the safety of equipment and personnel; When the test sample discharges or breaks down, due to the destruction of resonance conditions, the short-circuit current is small, only 1/q of the test current of the test sample, avoiding damage to the test sample caused by breakdown.
3. Good equivalence of the experiment
Using AC voltage close to the power frequency (30Hz-300Hz) as the test power supply, it is very close to the 50Hz/60ha power supply in terms of equivalence and consistency, ensuring the reliability and authenticity of the test results.
