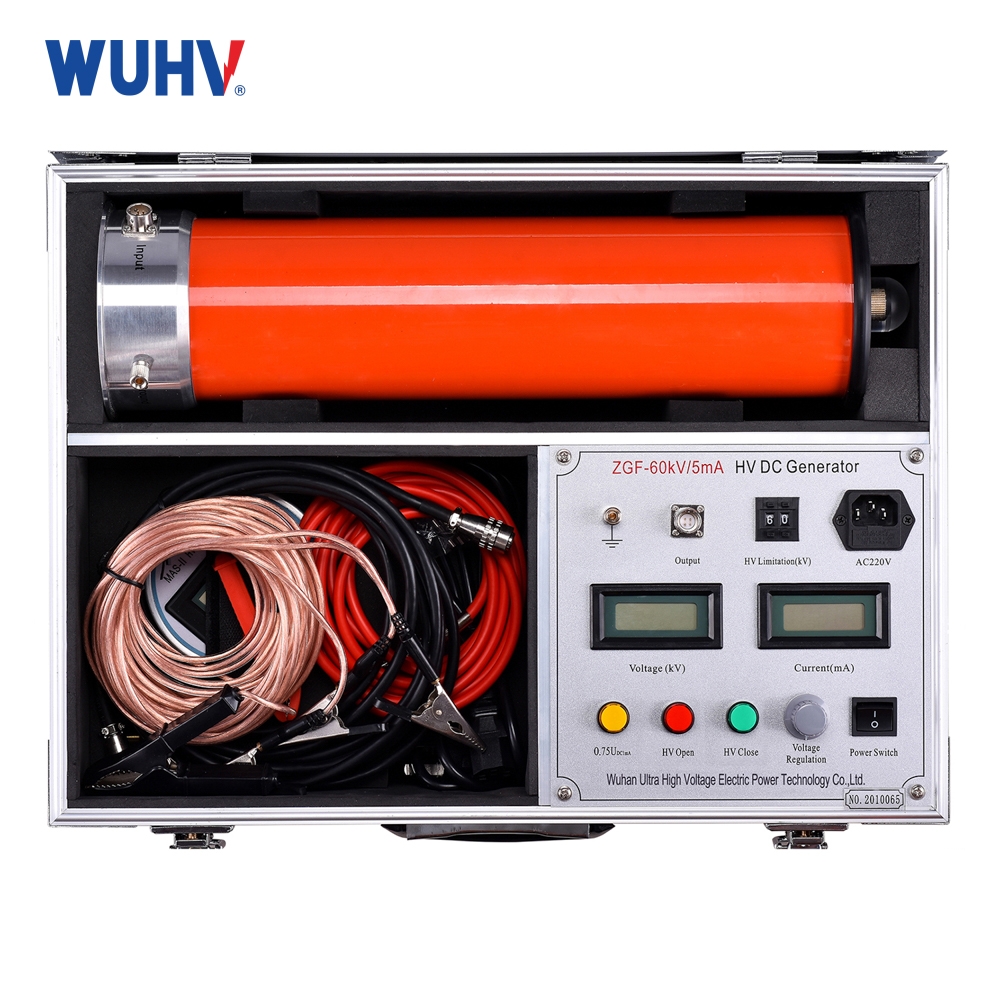

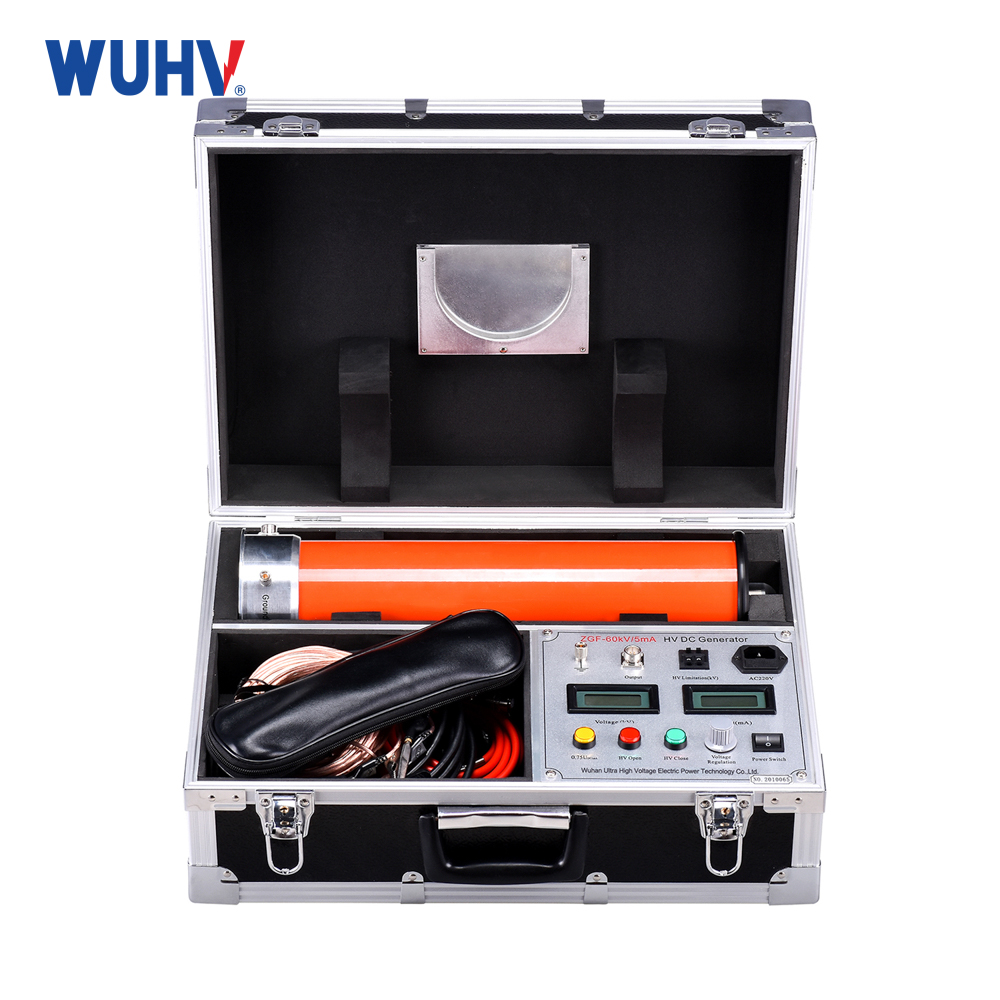

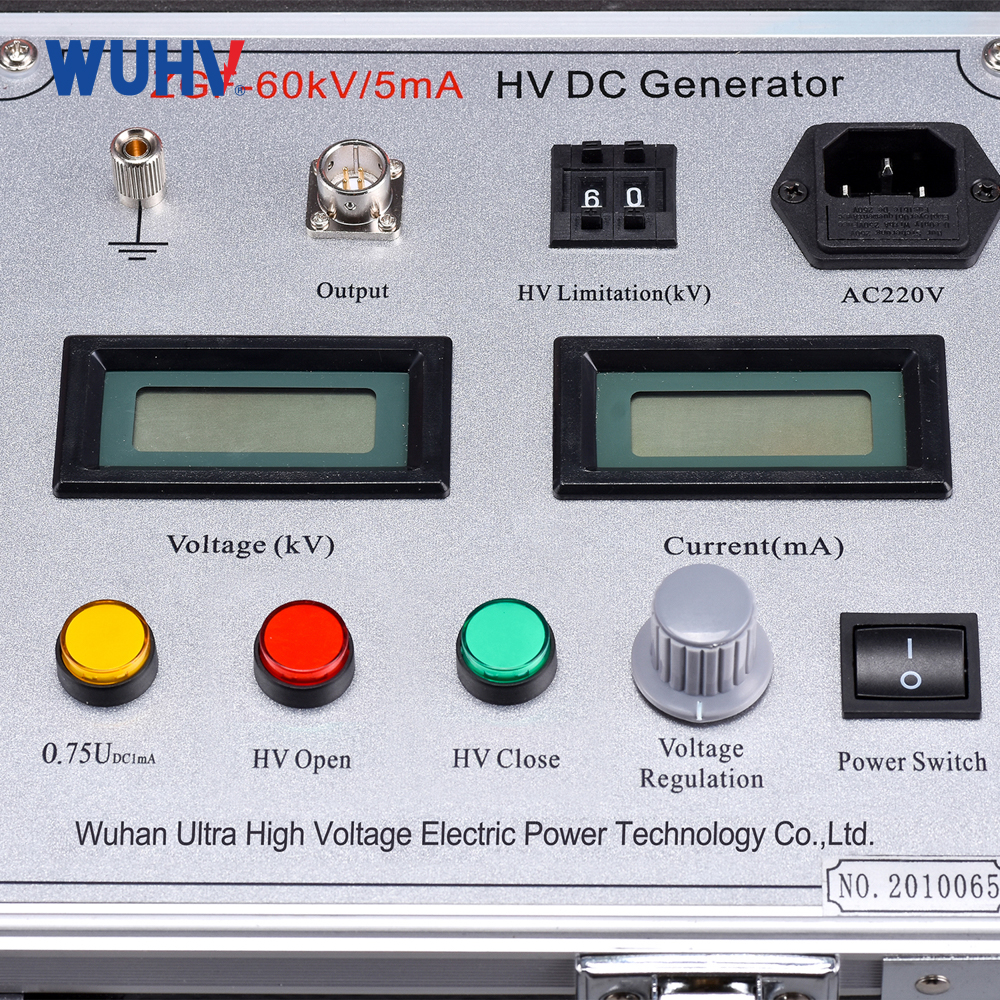

ZGF Integrated DC Hipot Tester
Product Introduction

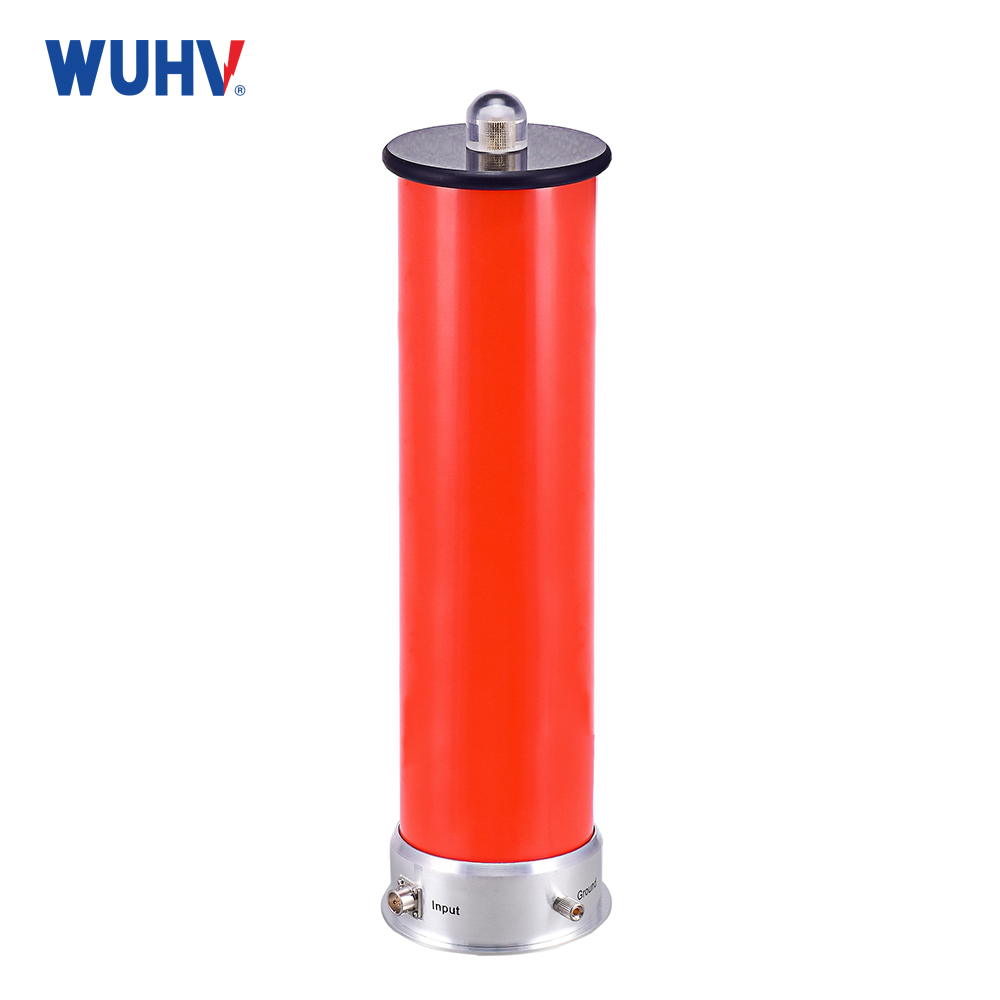

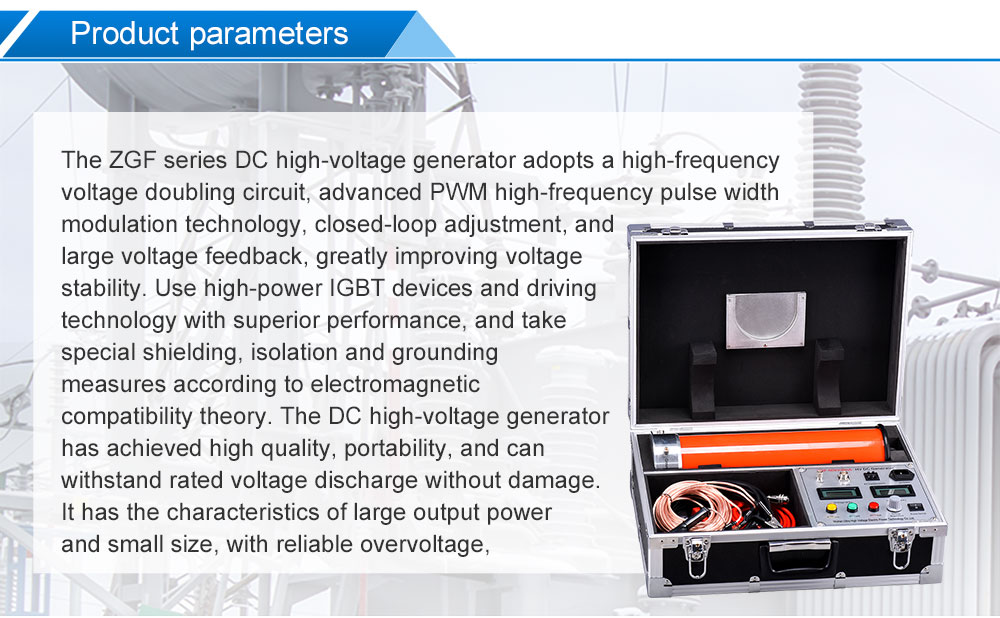

The ZGF Integrated DC Hipot Tester is specifically designed for detecting the electrical insulation strength and measuring leakage current in power devices. It employs a high-frequency voltage doubler circuit and integrates advanced PWM pulse width modulation technology along with a voltage-current dual closed-loop feedback system. Utilizing imported high-power IGBT devices and advanced drive technology, the tester achieves high voltage stability and extremely low ripple. Additionally, the adoption of imported high-frequency high-voltage rectifier diodes makes the double-pressure cylinder more compact and lightweight.
Technical Parameters
| specification | 60/2 | 60/3 | 60/5 | 120/2 | 120/3 | 120/5 |
| Rated voltage（kV） | 60 | 60 | 60 | 120 | 120 | 120 |
| Rated current（mA） | 2 | 3 | 5 | 2 | 3 | 5 |
| rated power（W） | 120 | 180 | 300 | 240 | 360 | 600 |
| Machine quality（kg） | 9 | 10 | ||||
| Machine volume（mm3） | 465*390*190 | 565*390*190 | ||||
| Double cylinder height（mm） | 440 | 535 | ||||
| Output voltage accuracy | ±(1.0%Reading ± 2 words) | |||||
| Output current accuracy | ±(1.0%Reading ± 2 words) | |||||
| Ripple coefficient | ≤0.5% | |||||
| Way of working | Intermittent use, rated load 30 minutes | |||||
| Overload capability | No-load voltage can exceed 10% of rated voltage for 10 minutes | |||||
| The maximum charging current is 1.25 times the rated current | ||||||
| power supply：AC220V±10% 50Hz | ||||||
| working environment | temperature：-10-40℃ | |||||
| Relative humidity: no more than 85% at room temperature of 25 ° C (no condensation) | ||||||
| Altitude: below 1500 meters | ||||||
