XC/TC Test Transformer Operating Box Control Box Control Console

XC/TC Test Transformer Operating Box Control Box Control Console is a special supporting equipment for a series of test transformers produced by UHV. The control box (table) has the characteristics of convenient use and maintenance, superior performance, safe and reliable use, beautiful appearance and structure, strong and durable, convenient movement, etc. It is the equipment of power supply enterprises, large factories, metallurgy, power plants, railways, etc., which need power maintenance departments.

Send Inquiry User Manual Calibration Certification

Product Details of XC/TC Test Transformer Operating Box Control Box Control Console

Technical parameters

Temperature	0～40℃
Altitude	< 2000m
Relative humidity	< 85%

Main Specifications

Model	Capacity	Power			Output		Operation	Weight	Remark
Model	Capacity	Phase	(V)	(A)	(V)	(A)	Operation	Weight	Remark
XC-3/220	3	1	220	50	0-220	15	Manual	16
XC-5/220	5	1	220	50	0-220	25	Manual	18
TC-10/220	10	1	220	50	0-220	50	Manual	80
TC-15/400	15	2	380	50	0-430	60.5	Manual	90
TC-20/400	20	2	380	50	0-430	50	Manual	100
TC-25/400	25	2	380	50	0-430	62.5	Manual	120
TC-30/400	30	2	380	50	0-430	75	Manual	140
TC-50/400	50	2	380	50	0-430	125	Manual electric	160
TC-100/400	100	2	380	50	0-430	250		50	External regulator
TC-100/3000	100	2	380	50	0-430	50		50
TC-200/3000	200	2	380	50	0-430	65		50
TC-250/3000	250	2	380	50	0-430	84	Electric	50
TC-300/3000	300	2	380	50	0-430	100	Electric

Nickname: Test Transformer Operating Box; Control Box; Control Console

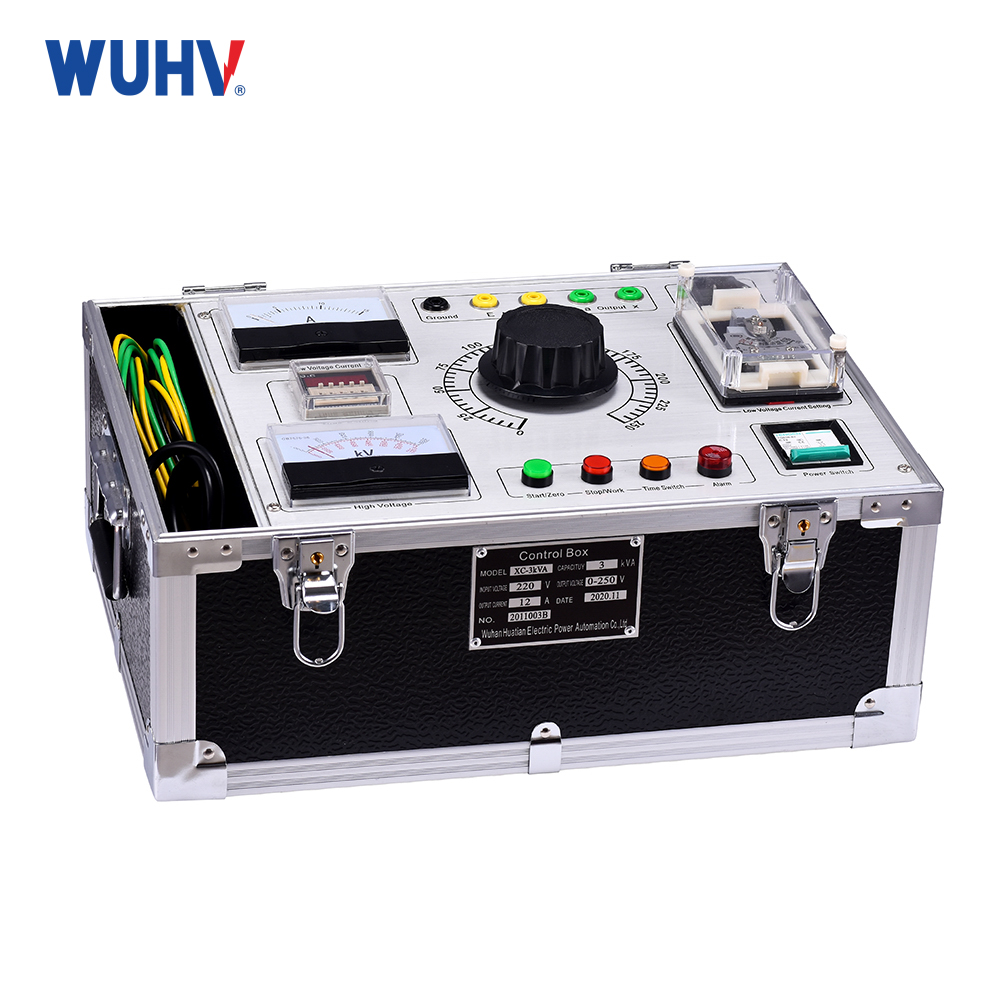

Test Transformer Operating Box _02

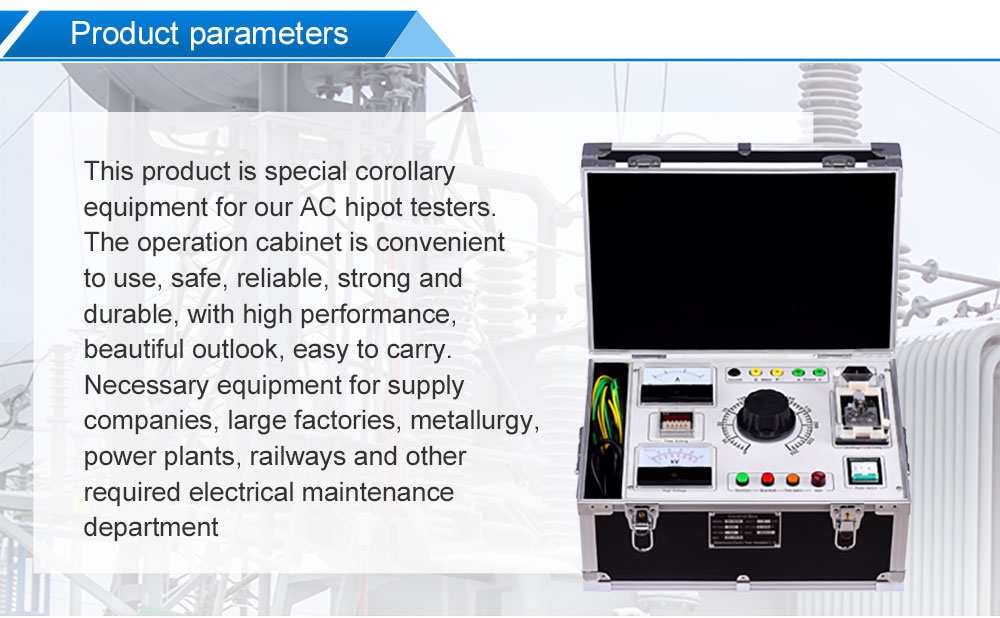

Test Transformer Operating Box _03

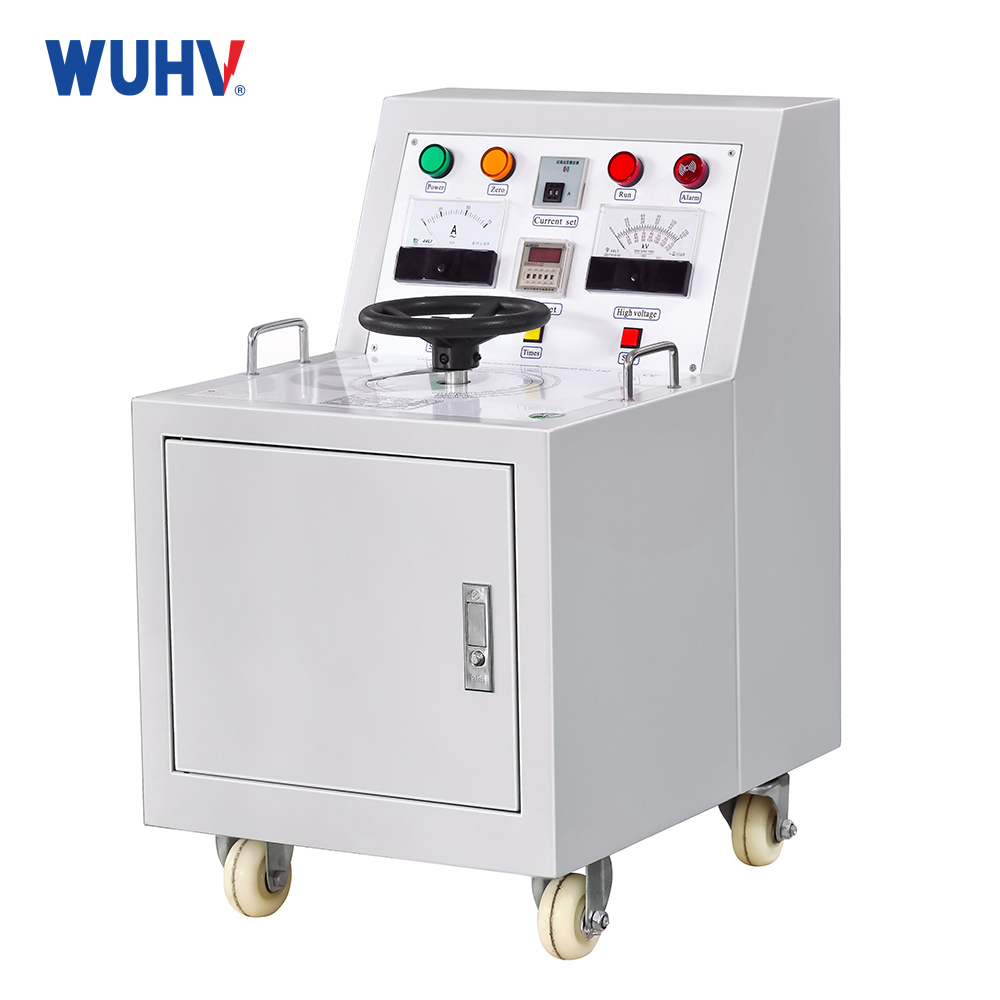

Test Transformer Operating Box _05

Feature:

1. Monitoring function: output current, meter voltage, timing.
2. Protection function: over-current function, time relay.
3. Wide timing range.
4. New current relay, more accurate, more reliable, ensure the person and instrument safety.
5. Reasonable structure, small size, light weight.

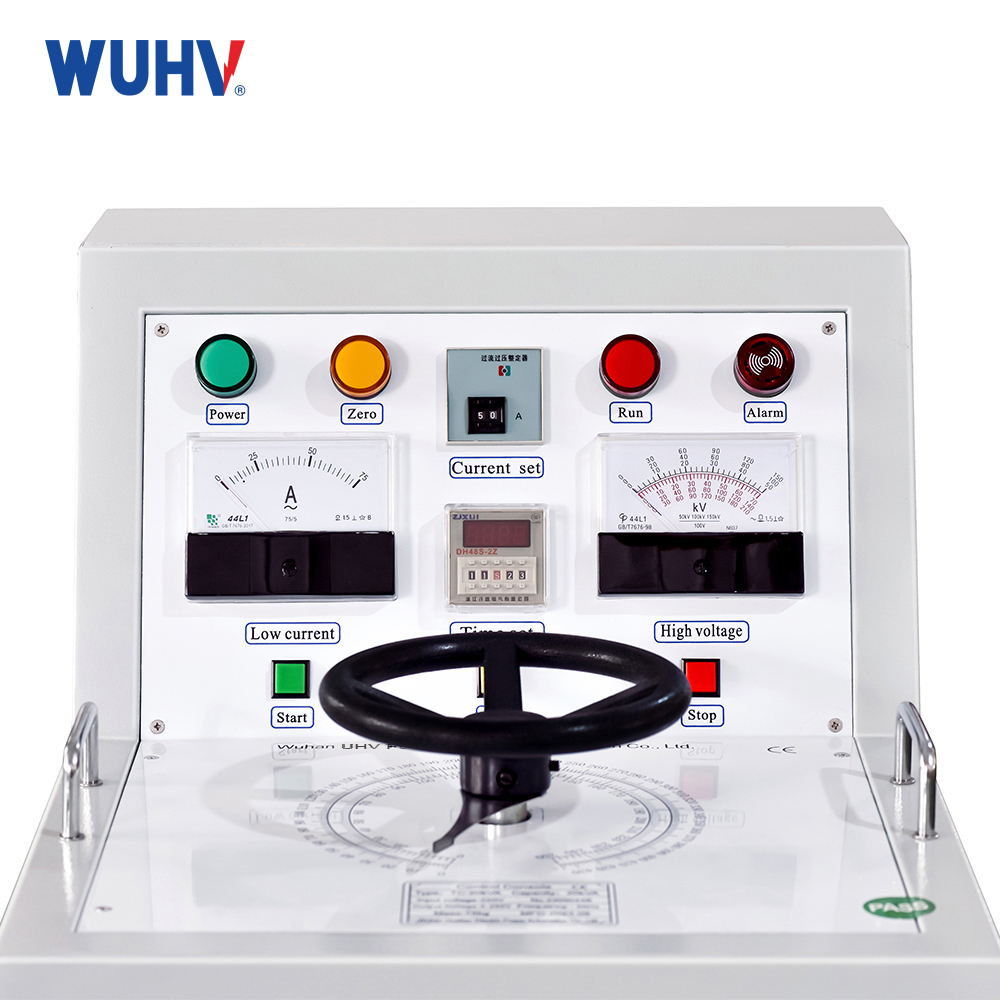

Test Transformer Operating Box _04

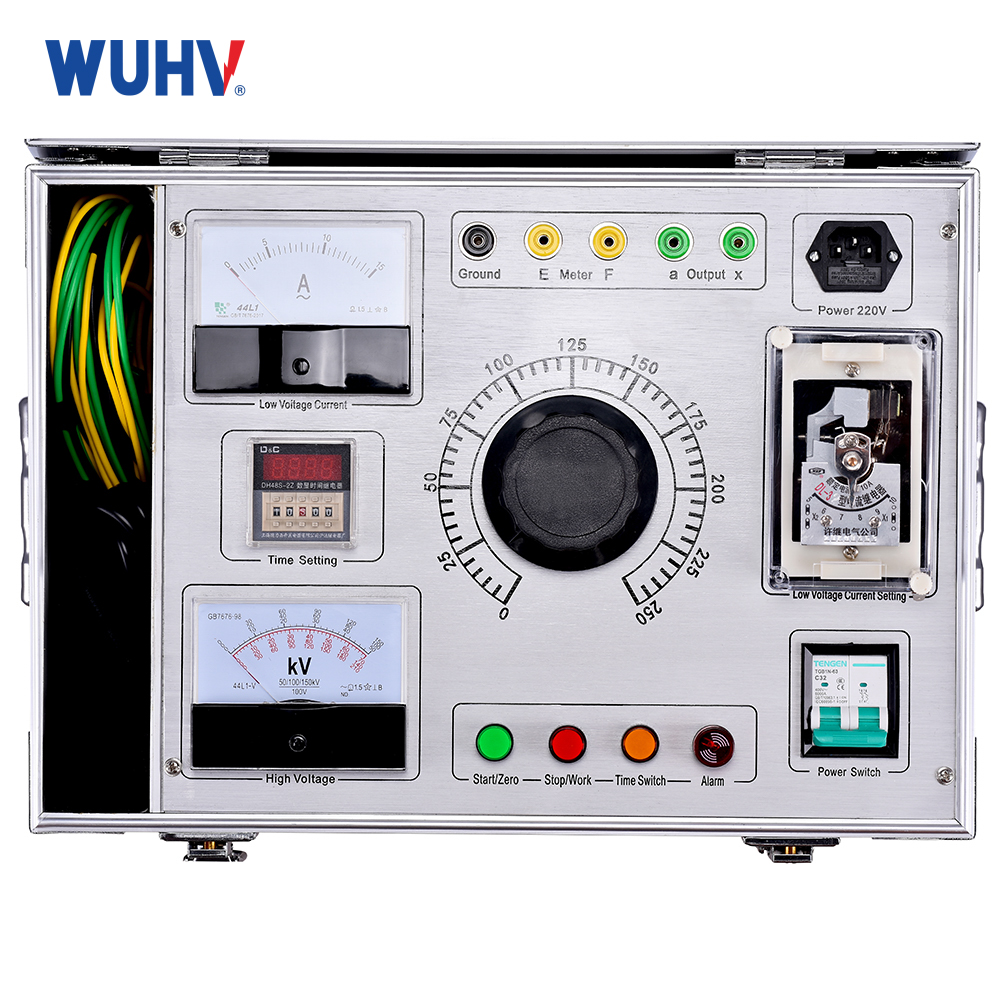

Test Transformer Operating Box _06
