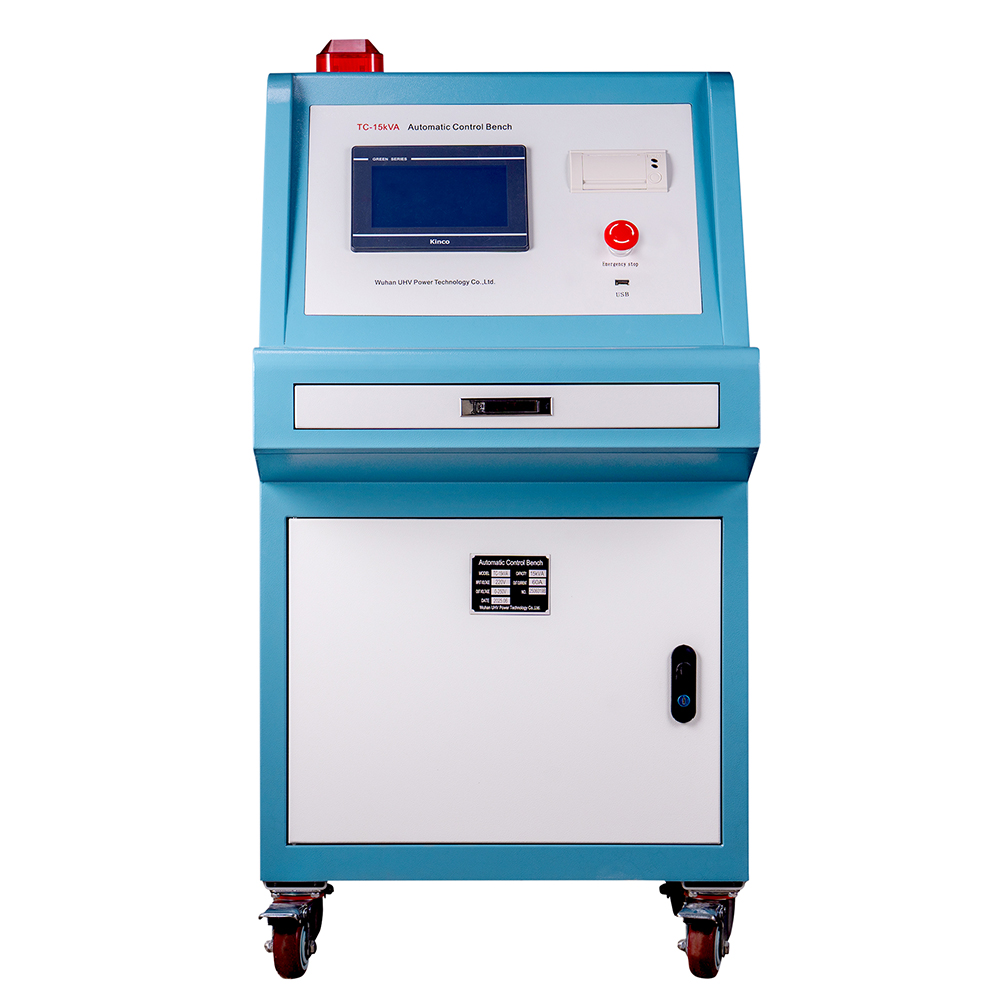

Product Introduction:
This fully automated control console performs power frequency withstand voltage tests on electrical products, components, and insulation materials at specified voltages. It evaluates insulation integrity, identifies defects, and quantifies overvoltage tolerance to assess product safety compliance.

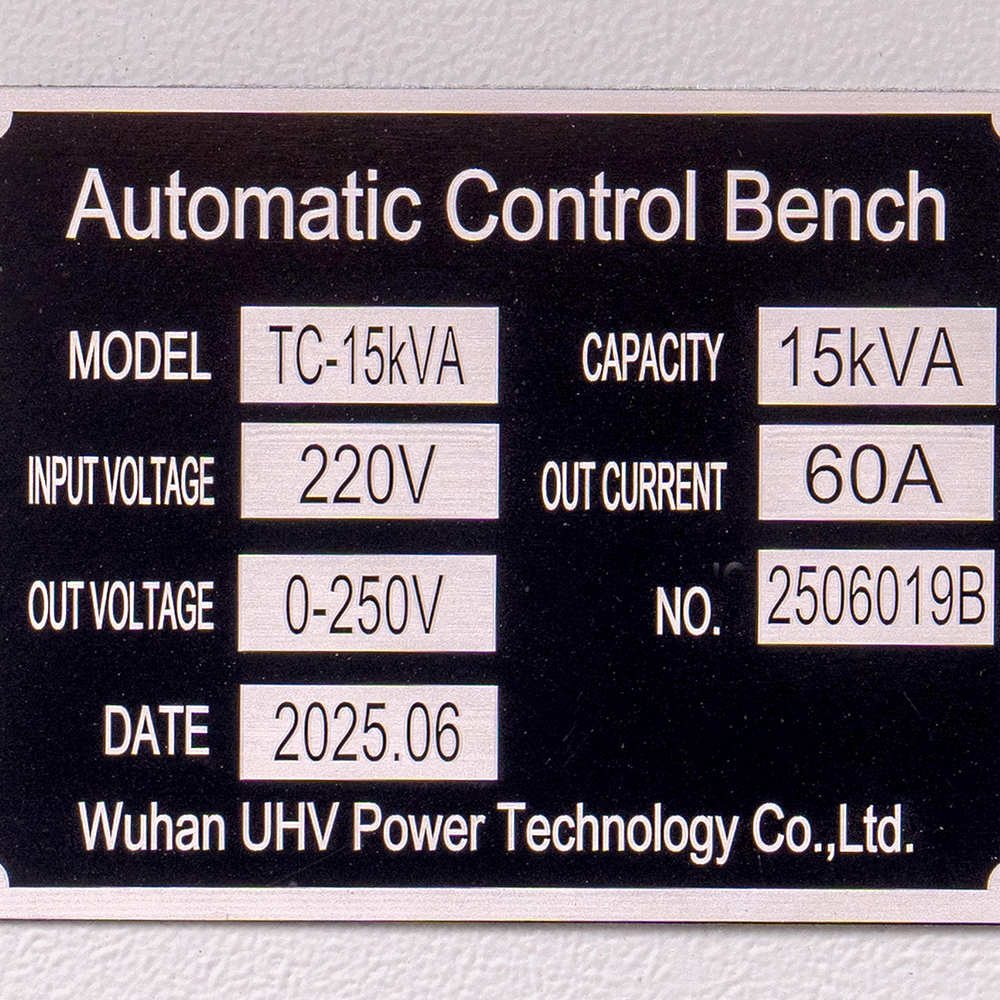

Technical parameters:
| rated capacity | 10~300kVA |
| low-tension current | 0～790A |
| VLDOTM | 0～250V；0～430V |
| instrument voltage | 0～100V |
| Console voltage measurement accuracy | 0.5%FS±3character |
| Console current measurement accuracy | 0.5%FS±3character |
| System measurement accuracy | 1.5%FS+3character |
| The length of the time | 0～3 hours 59 minutes 59seconds |
| supply voltage | AC220V±10%；AC380V±10%；50Hz±1Hz |
Main product specifications:
| specifications and models | capacity | power source | efference | Refer to the weight | comment | |||
| anthroposcopy | （V） | （A） | （V） | （A） | ||||
| GY-10/220 | 10 | 1 | 220 | 45 | 0～250 | 40 | 80 | / |
| GY-15/400 | 15 | 2 | 380 | 39 | 0～430 | 34 | 90 | / |
| GY-20/400 | 20 | 2 | 380 | 52 | 0～430 | 46 | 100 | / |
| GY-25/400 | 25 | 2 | 380 | 65 | 0～430 | 58 | 120 | / |
| GY-30/400 | 30 | 2 | 380 | 78 | 0～430 | 69 | 140 | / |
| GY-50/400 | 50 | 2 | 380 | 131 | 0～430 | 116 | 160 | / |
| GY-100/400 | 100 | 2 | 380 | 263 | 0～430 | 232 | 50 | External voltage regulator |
| GY-150/3000 | 150 | 2 | 380 | 394 | 0～430 | 348 | 50 | |
| GY-200/3000 | 200 | 2 | 380 | 526 | 0～430 | 465 | 50 | |
| GY-250/3000 | 250 | 2 | 380 | 657 | 0～430 | 581 | 50 | |
| GY-300/3000 | 300 | 2 | 380 | 789 | 0～430 | 697 | 50 |
Product Features:
1、7" High-Resolution Touch Interface
Bright 800×480 full-color PLC screen
Unified display of tension, current, time, status, and prompts
Intuitive visualization with exceptional readability
Streamlined operation adaptable to diverse test scenarios
High-precision touchscreen for all function settings
Enhanced operational safety and system reliability
Replaces legacy potentiometers with password-protected digital adjustment
Ensures field-friendly precision control
Password-protected VT ratio setting
Supports multi-voltage transformers via single console
Chinese-language guided operations
Status prompts enable operation without manuals
Real-time "Test-in-Progress" display
Continuous operator safety alerts
Audible/visual alarms for test anomalies
STOPWATCH mode: Automatic timing at target voltage → Results display → Auto-zero reset
Traditional step-adjustment via buttons
Auto-limit detection with overvoltage protection
Boost rate auto-reduction at 90% target voltage
Ensures voltage accuracy
Adjustable ramp rates for optimal transformer matching
Hardware/software noise suppression
Uncompromised stability in EMI environments
Instant printouts of test data, dates, and parameters
Save tests to USB drives for long-term archiving
2、WindowsXP OS
3、Touch-Driven Safety
4、Digital Calibration
5、Programmable Transformer Ratio
6、Intuitive Workflow
7、Active Safety Monitoring
8、Alarm System
9、Auto-Timing & Zero-Return
10、Manual Voltage Ramp
11、Intelligent Ramp Control
12、Customizable Boost Speed
13、Anti-Interference Design
14、Integrated Printing
15、USB Data Export
