UHV-280 Insulating Boots (Gloves) Withstand Voltage Test Equipment (Automatic)
Product Introduction:

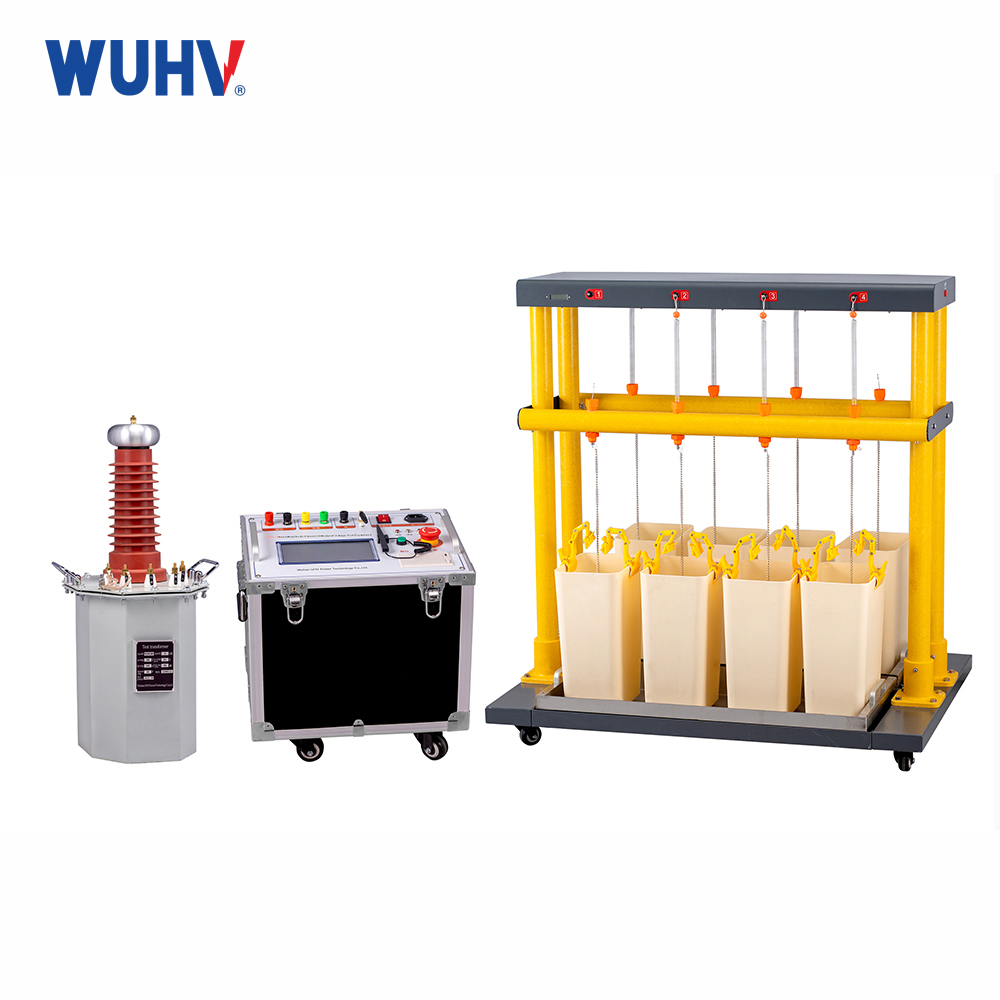

UHV-280 Insulating Boots (Gloves) Withstand Voltage Test Equipment (Automatic) is used for AC withstand voltage testing of common electrical insulation tools. It can test up to 8 insulated boots or gloves simultaneously. The leakage current data is transmitted back to the control box via anti-interference wireless transmission technology. Each test channel is equipped with an independent breaking mechanism, ensuring that individual tests do not affect others.
Technical Parameters
| Power | 220V±10% 50Hz | |
| Console Output voltage | 0-250V | |
| Console Output current | 12A | |
| Booster output voltage | 30kV-500kV | |
| Output capacity | 3kVA-100kVA | |
| High voltage leakage current range | 29.9mA | |
| Leakage current with trip system back range | ≥12mA | |
| Voltage measurement error | ±1% +3 words | |
| Leakage current measurement error | ±1% +3 words | |
| Leakage current resolution | 0.01mA | |
| Timing | 99 minutes of free setting | |
| TEMP | -10℃-40℃ | |
| HR | ≤90%RH, no condensation, instrument does not flicker | |
| Overall dimensions of the control console | 400×300×550mm3 | |
| External dimensions of testing machine | 1000×800×1000mm3 | |
| Console weight（kg） | 25 | |
| Testing machine weight（kg） | 20 | |
Instrument features:
This product is a fully automated withstand voltage test equipment for insulating tools, offering three core advantages: high efficiency, safety, and intelligence.
1、Fully Automated Operation: Equipped with a high-precision stepper motor to control voltage regulation, the device automatically performs the entire testing process — including voltage ramping, holding, timing, and shutdown — in accordance with national standards. Real-time leakage current and results are displayed for each sample.

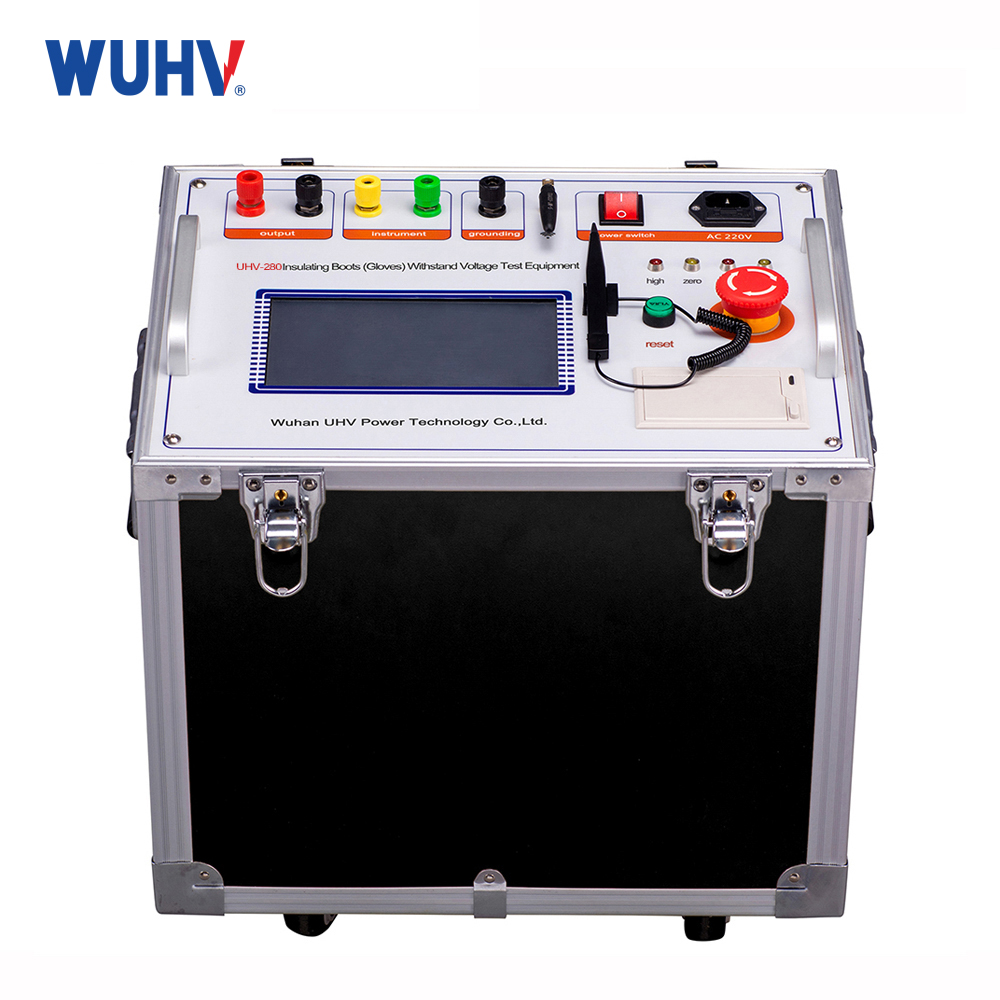

2、Multifunctional & User-Friendly: Featuring a Chinese graphical interface with clear visual status indicators and intuitive operation via a rotary mouse. All functions, including target voltage, leakage current, and test time, can be set digitally for convenient on-site use.
3、Intelligent Safety Protection: Includes overcurrent and overvoltage protection to ensure the safety of both personnel and equipment.
4、Flexible Output & Measurement: Supports customizable output voltages from 1–50 kV, leakage current thresholds from 1–20 mA, and test durations from 1–10 minutes. Common test parameters are pre-programmed for quick setup.
5、Integrated Data Management: Equipped with a high-visibility LCD screen and a built-in micro-printer for immediate data printout.
