Product Introduction:

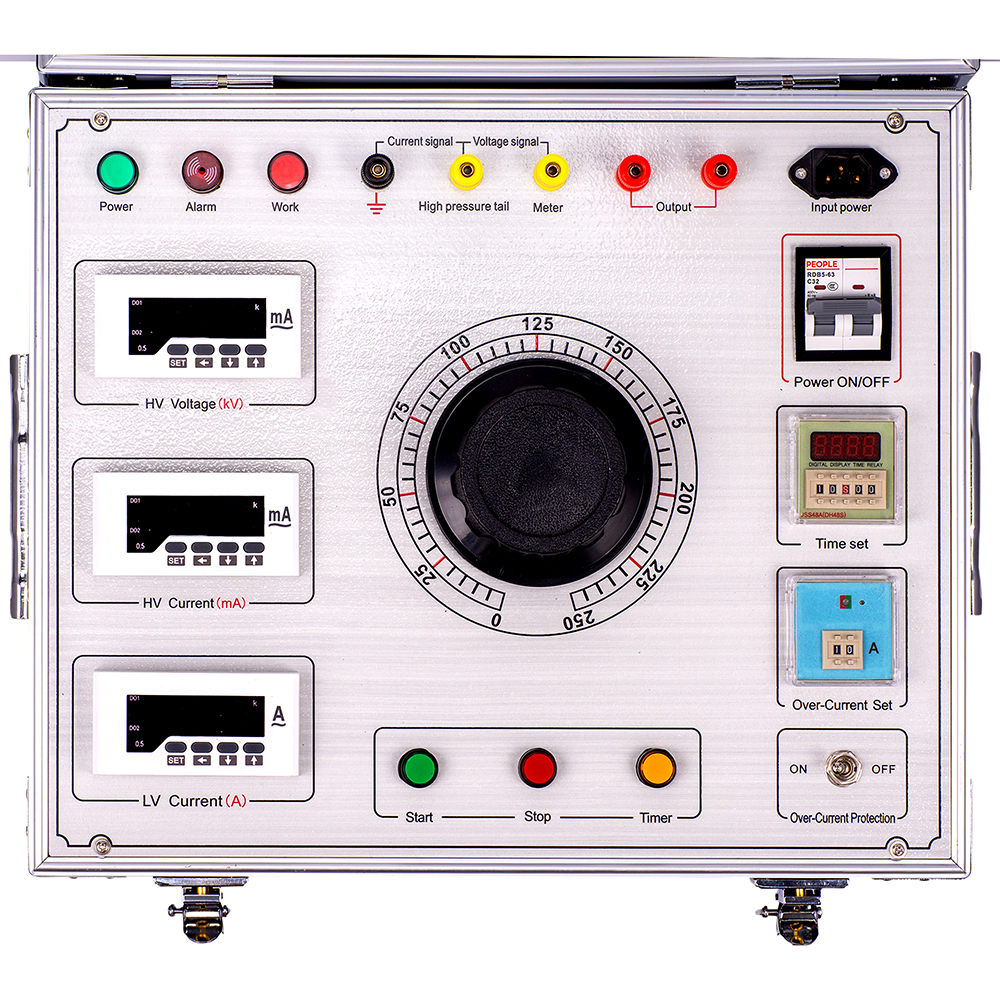

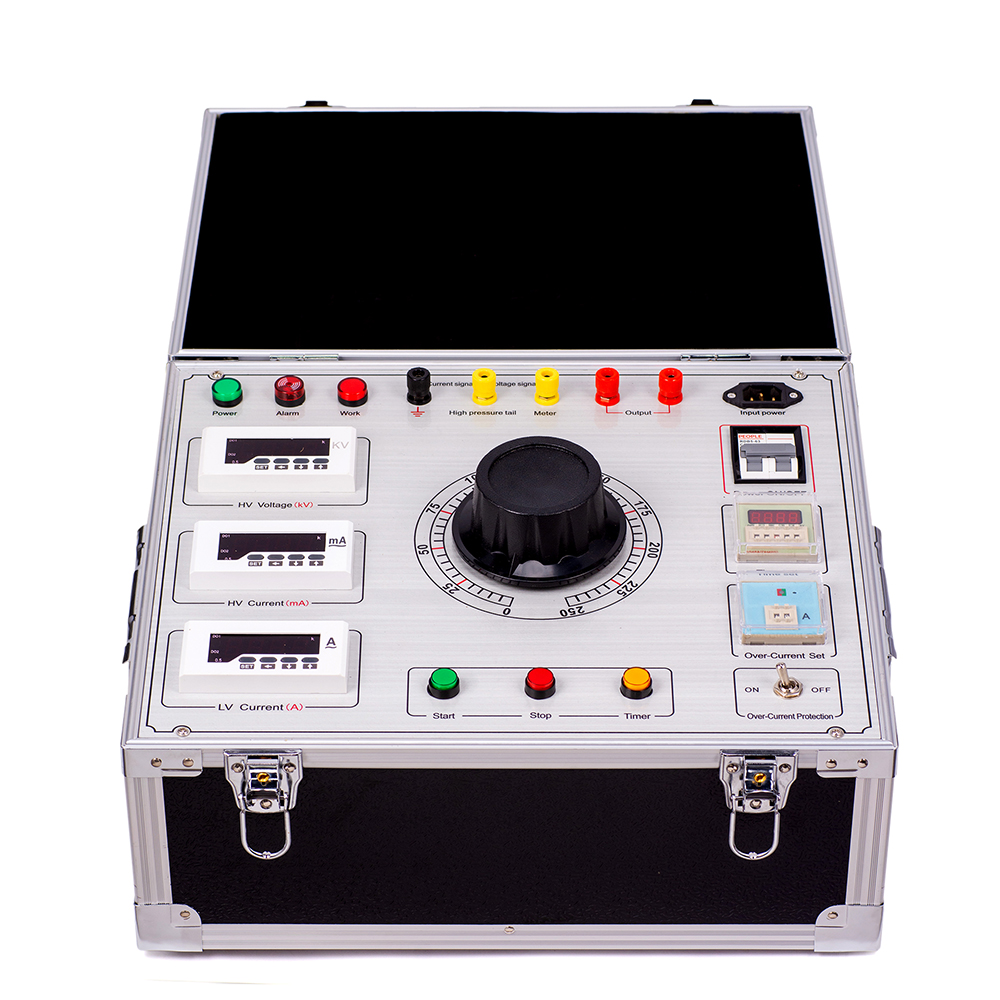

SX Series test transformer operating box/table can smoothly output 0-250V AC voltage, and has a number of monitoring and protection functions, and test transformers. Current riser and other equipment supporting use or other electrical tests.
Technical parameters:
| Input Voltage | 220V±10% 50Hz |
| Output voltage | 0-250V/Output capacity: 5kVA |
| Instrument voltage | 100V/100kV |
| Timing range | 1S-99H |
| Ambient temperature | -20℃ to 50℃ |
Product Features:
1.Monitoring: Output current, instrument voltage, zero position, contactor status (open/close), and timer status.
5.Compact Design: Engineered for space efficiency with a small footprint and lightweight construction.
Precautions:
1. During use, this instrument should be reliably grounded.
2. The process of boosting and lowering should be carried out at a constant speed, without sudden acceleration or deceleration.
3. During the experiment, monitoring instruments should be observed at all times to promptly detect any unexpected situations.
4. During use, please handle the equipment gently and keep it clean and hygienic.
