Working principle of series resonance? Wuhan UHV specializes in the production of series resonance, with a wide range of product selection and professional electrical testing. To find series resonance, choose Wuhan UHV.
Principle of series resonance
We know that when the circuit frequency f=1/2 π√ LC, resonance occurs in the circuit, and the voltage on the test sample is Q times the output voltage of the excitation transformer high voltage end. Q is the system quality factor, which is the voltage resonance multiple, generally ranging from tens to hundreds or more. First, adjust the output frequency of the variable frequency power supply to induce series resonance in the circuit, and then adjust the output voltage of the variable frequency power supply under the condition of circuit resonance to achieve the test value of the sample voltage. Due to the resonance of the circuit, a smaller output voltage of the variable frequency power supply can generate a higher test voltage on the test sample CX.
Working principle of series resonance
Using the principle of series resonance, by adjusting the output frequency of the variable frequency controller, the inductance l of the reactor in the circuit and the capacitance c of the test sample resonate, and the resonant voltage is the voltage applied to the test sample. The power supply is provided through the frequency modulation controller, and the test voltage is initially boosted by the excitation transformer to apply high voltage to the reactor l and the test sample cx. By changing the output frequency of the frequency modulation controller, the circuit is in series resonance state; The resonant frequency of the circuit depends on the capacitance cx of the test sample and the inductance l of the reactor. Adjust the output voltage of the variable frequency controller to achieve the required voltage value of the high voltage on the test sample.
Product Features
The large screen displays test data and test status, and has real-time operation step prompt function
Can flexibly adjust the experimental voltage, frequency range, and pressurization time
The test results can calculate the capacitance of the test sample
Equipped with computer communication interface for easy communication and management of experimental data
Small size, light weight, easy operation
High resolution, frequency resolution of 0.001Hz
High safety and reliability, the system has overcurrent, overvoltage, and discharge protection functions, which can effectively protect personal and equipment safety. The test results can be printed and upgraded into software.

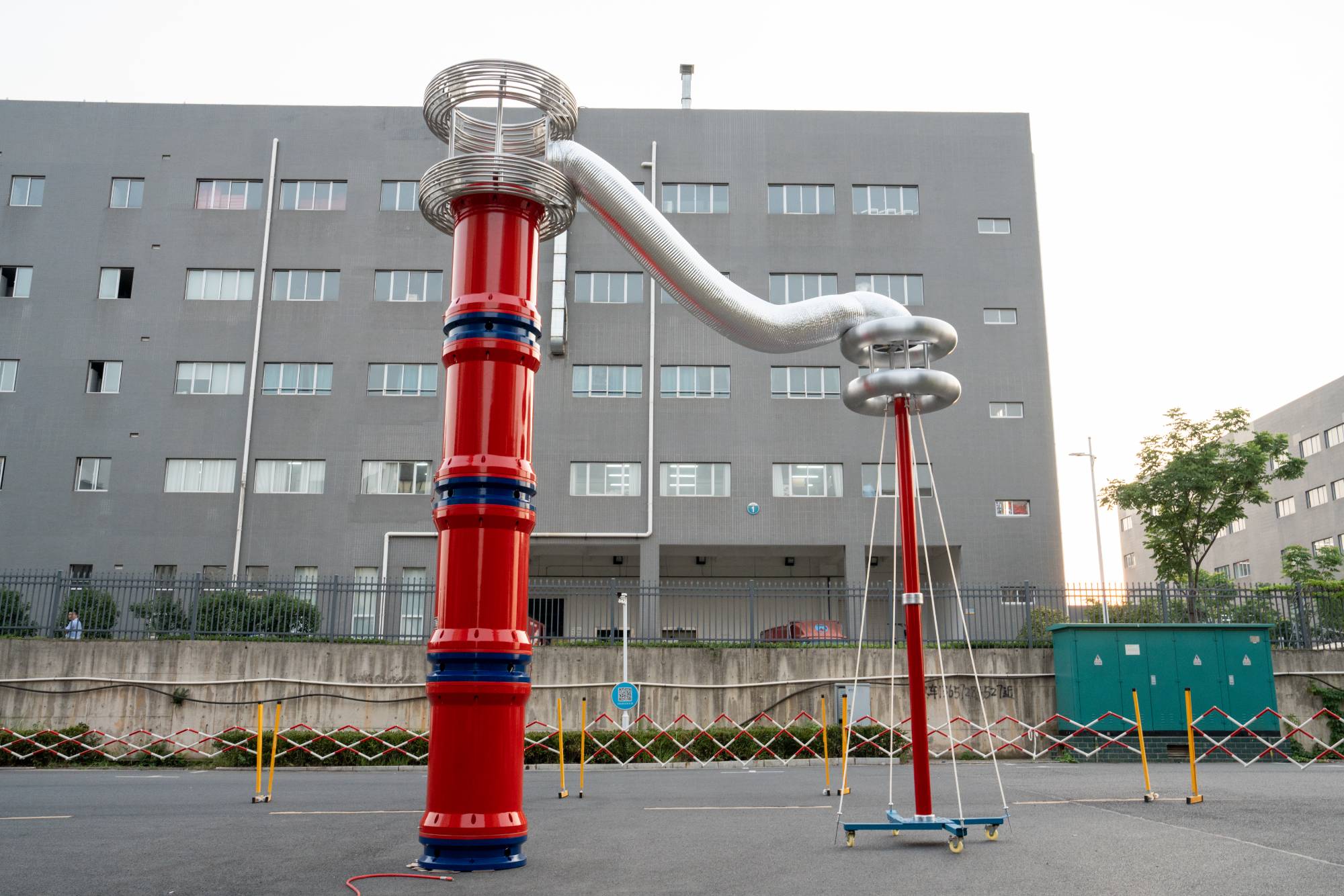

The series resonance test device is widely used in industries such as power, metallurgy, petroleum, chemical, etc. It is suitable for high-capacity and high-voltage capacitive test samples, such as generators, transformers, etc GIS、 Handover and preventive tests for high-voltage cross-linked cables, transformers, bushings, etc. Our company has independently developed variable frequency and voltage regulation software technology in the field of variable frequency series resonance high voltage testing, leading the domestic high voltage testing industry. Using this technology, we have designed and manufactured a complete set of variable frequency series parallel resonance testing devices using 16 bit fine variable frequency, 10KHz carrier frequency, SPWM, and imported original IPM modules, which fully comply with the relevant national regulations and requirements for high voltage testing.
