Hey, colleagues in the power industry! Today, let's talk about a seemingly high-end but incredibly important device - the VLF withstand voltage test devices. You may ask, what is this thing for? Simply put, it is like a "health inspector" for power equipment before leaving the factory and during service, responsible for conducting a "withstand voltage" test on high-voltage equipment to see if they can withstand the "pressure".

What is ultra-low frequency withstand voltage test?

Let's first break down this name. The 'withstand voltage test' should be familiar to everyone, which is to apply high voltage to the equipment to see if it will 'electrocute'. What does' ultra-low frequency 'mean? The traditional power frequency (50Hz or 60Hz) withstand voltage test may cause excessive pressure and damage to some large, old, or aging insulation equipment (such as cables, transformers, etc.). And ultra-low frequency testing, as the name suggests, is to use a very low frequency AC voltage (usually around 0.1Hz) to perform voltage withstand testing on equipment. The advantage of doing so is that it greatly reduces damage to equipment insulation while ensuring testing effectiveness, and it is also safer.

What are the factors that affect the effectiveness of ultra-low frequency withstand voltage testing?

There are several factors that need to be paid special attention to in order to make this "physical examination" accurate and good:

The selection of experimental frequency: Although it is called "ultra-low frequency", the specific frequency selection still needs to be determined based on the characteristics of the test sample, which is a technical task.

The stability and accuracy of the test voltage: The purity of the voltage waveform and the accuracy of the voltage value are directly related to the reliability of the test results.

Insulation status of the test sample: The insulation of the test sample itself has problems that we need to discover through testing, but if it is severely damaged, special care should be taken during testing.

Experimental environment: Environmental factors such as temperature and humidity can also have a certain impact on the experimental results.

What tools can help you?

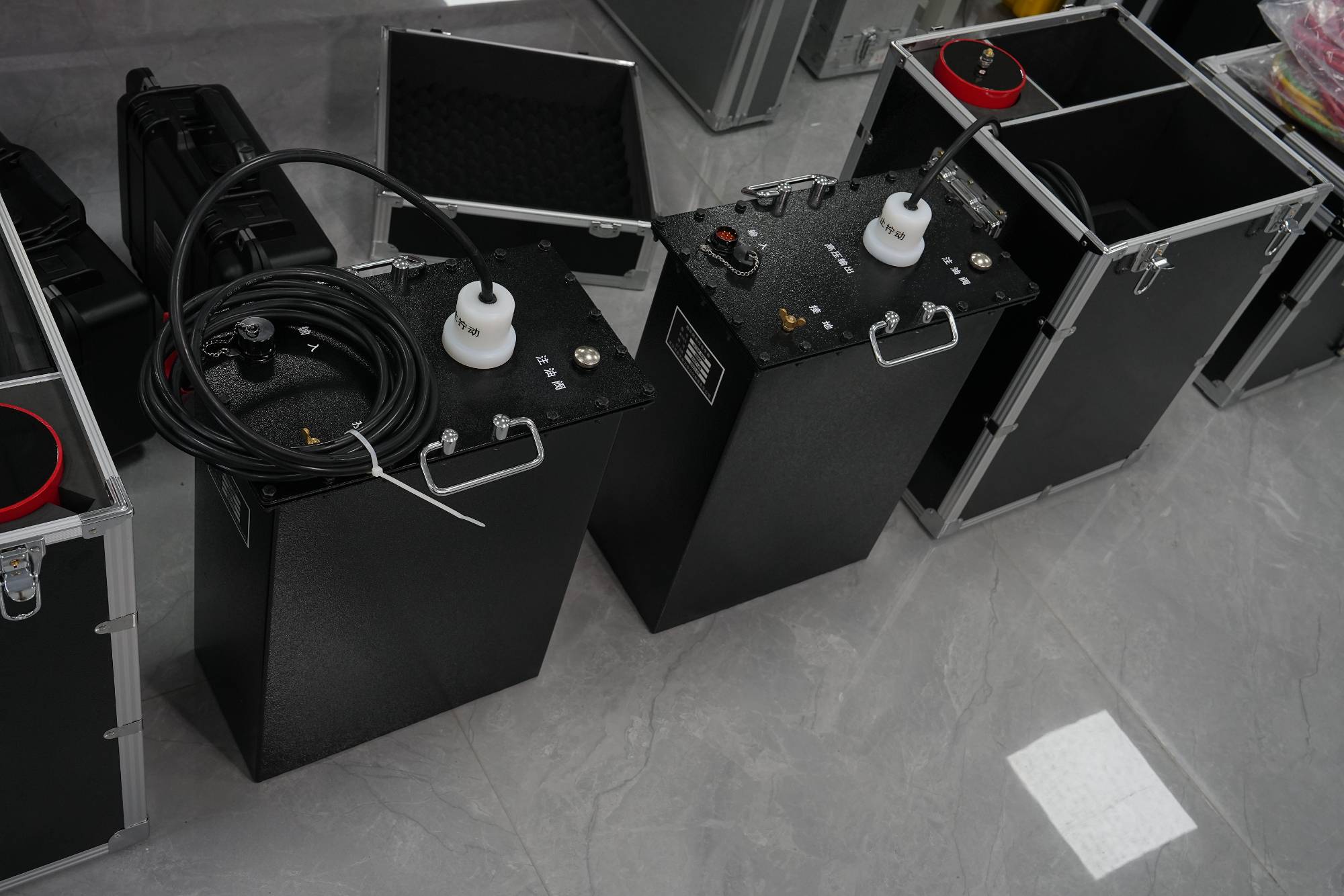

Speaking of which, we have to mention the contribution of professional equipment. A good VLF withstand voltage test device can provide stable and pure test voltage, and has precise measurement and control functions. For example, some advanced devices use resonant boost technology, which can generate high test voltages with a small power source and is very efficient. Wuhan UHV Power Technology Co., Ltd. has a profound technical accumulation in this field. The equipment they develop performs well in stability and accuracy, providing a solid guarantee for the safe operation of the power system.

What is the connection between ultra-low frequency withstand voltage test and?

This experiment is closely related to many power equipment, such as power cables, transformers, GIS (gas insulated switchgear), generators, etc. During their production, installation, and operation, insulation performance needs to be verified through cable withstand voltage tests, transformer withstand voltage tests, and other methods. This technology can be said to run through the entire lifecycle of power equipment.

How can we do better?

To make the ultra-low frequency withstand voltage test better, we can start from the following aspects:

Choosing high-quality testing equipment: Choosing a manufacturer with strong technical strength like Wuhan UHV Power Technology Co., Ltd. can ensure the stable and reliable performance of the equipment, and the test results have more reference value.

Standardize the experimental operation process: strictly follow national standards and industry norms to ensure the accuracy and safety of the experiment.

Strengthen data analysis and interpretation: The data after the experiment is not just numbers, but also requires professional analysis and interpretation to truly discover the problems with the equipment.

Regular maintenance and calibration of equipment: Ensuring that the testing device itself is in good working condition is a prerequisite for ensuring accurate test results.

Conclusion

In summary, the VLF withstand voltage test device is the "behind the scenes hero" to ensure the safe operation of power equipment. Through special electrical testing, we can detect potential insulation hazards earlier and avoid major accidents. Wuhan Ultra High Voltage Power Technology Co., Ltd. plays an important role in this field with its professional technology and high-quality products, contributing to the safe development of China's power industry.
