UHV-670 Automatic Oil Interfacial Tension tester is an instrument to test the oil or liquid surface interfacial tension value. Measure the surface tension of various liquids (liquid-gas interface) and the interfacial tension of mineral oil and water (liquid-liquid interface)

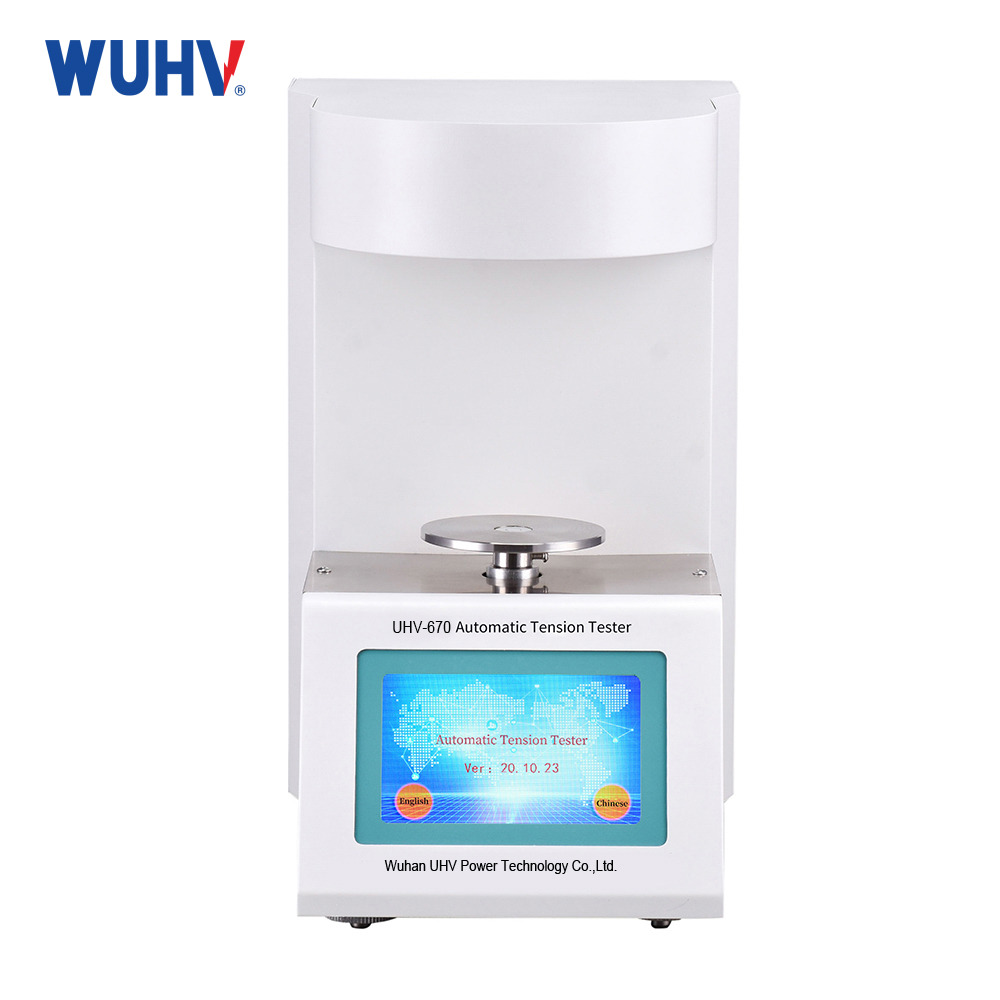

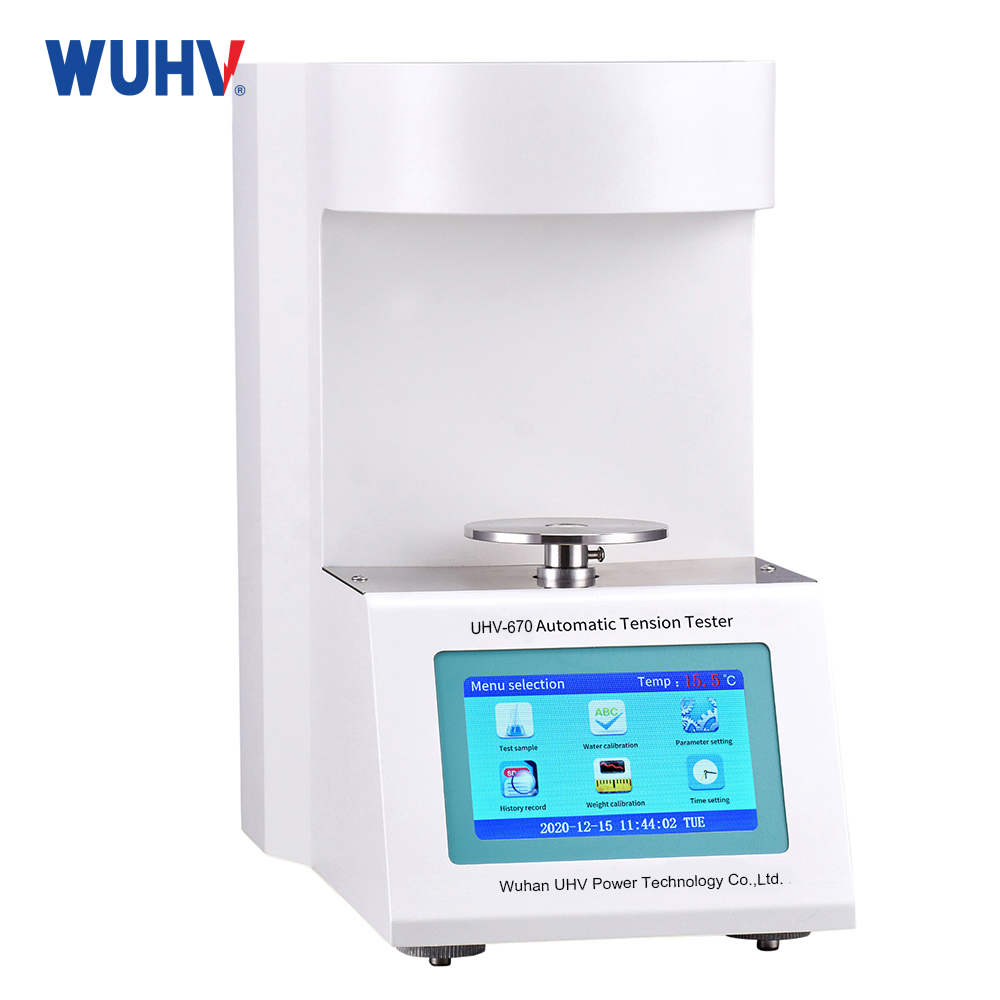

Product Details of UHV-670 Transformer Oil Surface Tension Tester
Product Introduction:
The Automatic Interfacial Tension Tester is designed to measure both the surface tension of liquids (at liquid-gas interfaces) and the interfacial tension between mineral oil and water (at liquid-liquid interfaces), in full compliance with the GB6541-86 standard — "Method for Determination of Oil-Water Interfacial Tension of Petroleum Products" (Ring Method).

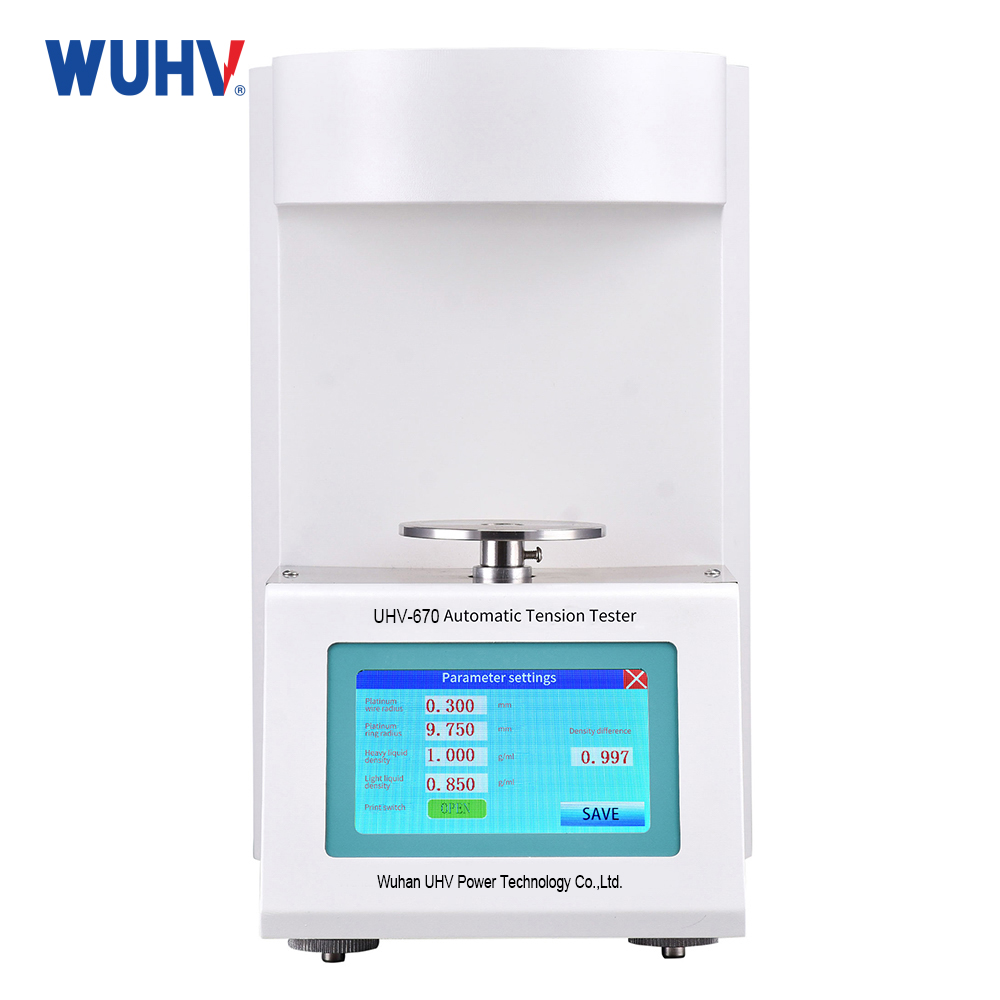

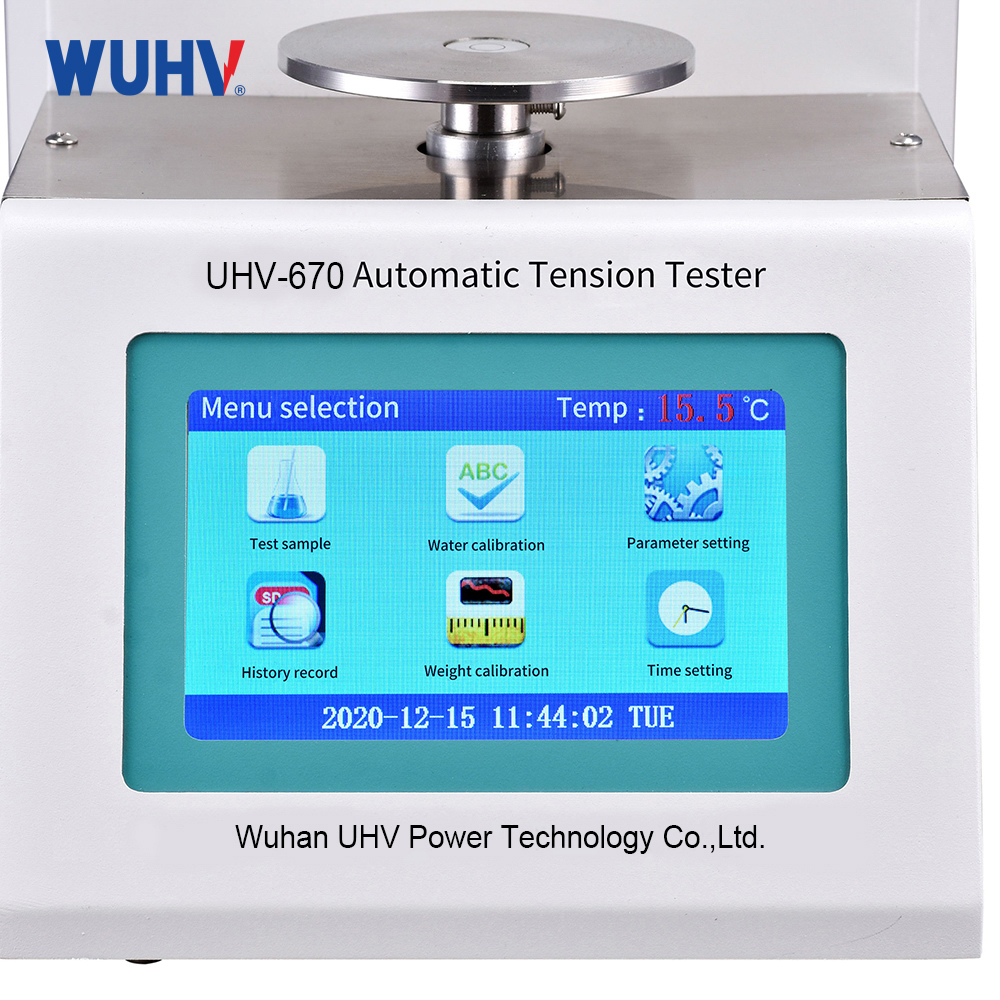

Featuring a color touch screen display and clearly labeled Chinese menu prompts, the instrument offers a highly automated and reliable testing process with excellent repeatability. Operation is extremely simple: after powering on, all tests can be easily completed by following the intuitive on-screen menu instructions.
Technical parameters
Measuring range
2～200 millinewtons/m
Sensitivity
0.1 millinewtons/meter
Accuracy
0.1 millinewtons/meter
Resolution
0.01 millinewtons/m
Repeatability
0.3%
Applicable temperature
10～30℃ (typical value: 25℃)
Applicable humidity
(20～75)﹪RH
Power supply
AC 220V±5% 50Hz
Power
20VA
Dimensions
185×260×360 (mm)
Weight
15kg
Product Features:
1. Intuitive Operation: Equipped with a color touchscreen and clearly labeled menu buttons with full Chinese prompts, ensuring an easy-to-navigate user interface.
2. Highly Reliable Performance: Designed with advanced automation for consistent and dependable operation, delivering excellent repeatability across tests with minimal user effort.
3. Streamlined Testing Process: Simply power on the instrument and follow the on-screen prompts to complete all measurements — no complex setup or training required.
Working principle:

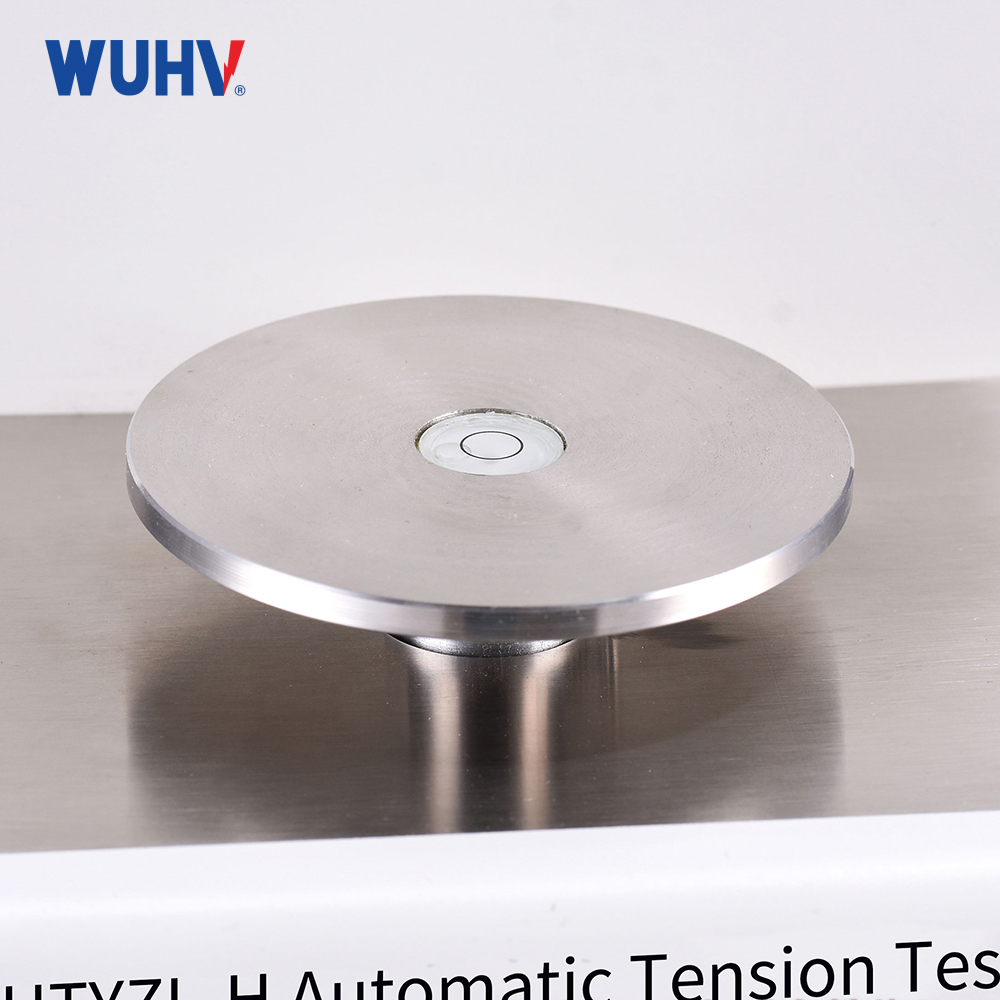

The working principle of the instrument is to apply the high-frequency induction micro-displacement automatic balance measurement systemto the torsion balance,that is, when the force acting on the platinum ring changes, the balance bar connected with the platinum ring is in the two eddy current probes Displacement occurs in the two eddy current probes, causing the differential transformer to lose balance, and the input signal of the differential amplifier in the circuit also loses balance. After being amplified by the amplifier, the output is amplified by the platinum ring. The electric signal that changes with the force, this signal is sent to the microprocessor for processing, and the actual tension of the tested sample is automatically calculated according to the international GB6541.
