Product Introduction:
The FY Series Current and Voltage Transformer Load Box is specially designed to provide various payloads during the testing of current and voltage transformers, making it an ideal matching product for various transformer verification devices.
The Transformer Load Box is designed in strict accordance with national standards JJG313-94 and JJG314-94. It offers several notable advantages, including:
1、High Output Capacity: Capable of delivering substantial output to meet diverse testing requirements.
2、Full Range of Loads: Provides a comprehensive selection of load options for versatile applications.
3、Lightweight Design: Easy to handle and transport.
4、Attractive Appearance: Features a modern and well-finished exterior.
5、Excellent Stability: Ensures reliable and consistent performance during testing.
These features make the FY Series Transformer Load Box a reliable and practical choice for transformer testing applications.
Product Parameters

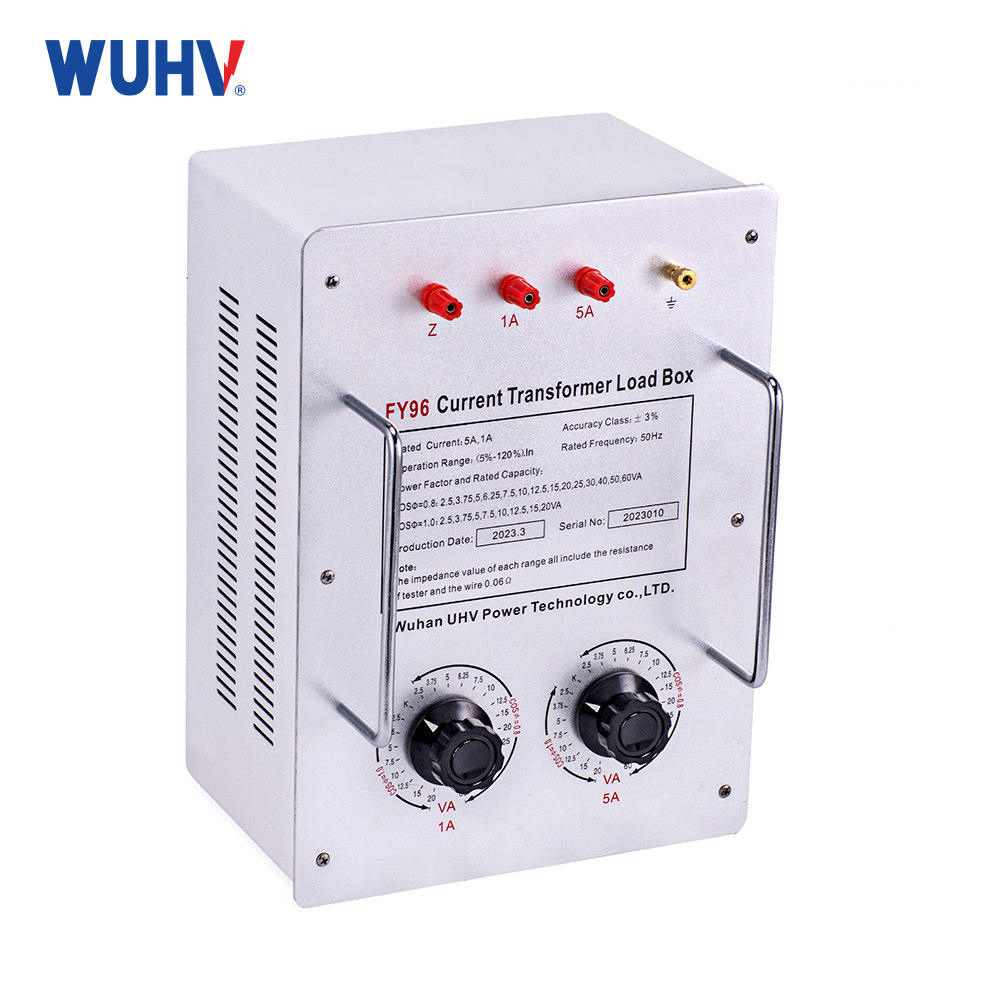

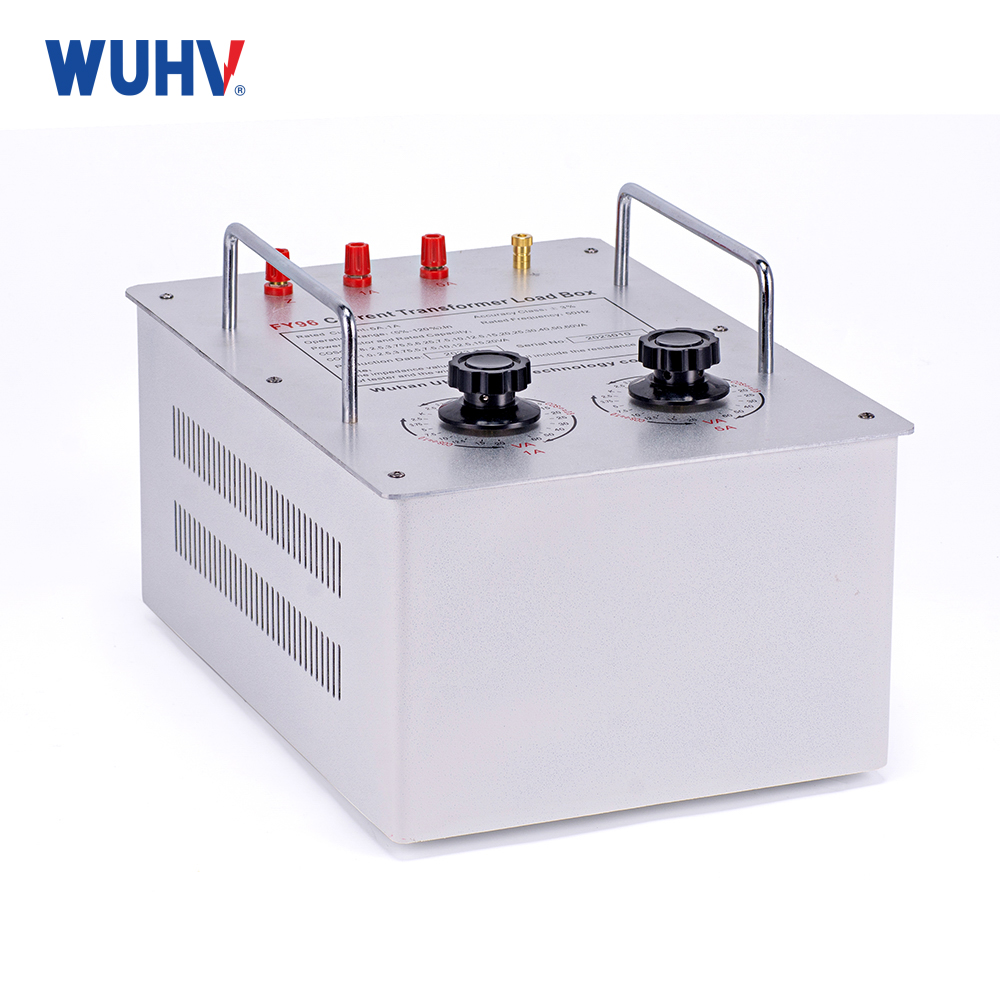

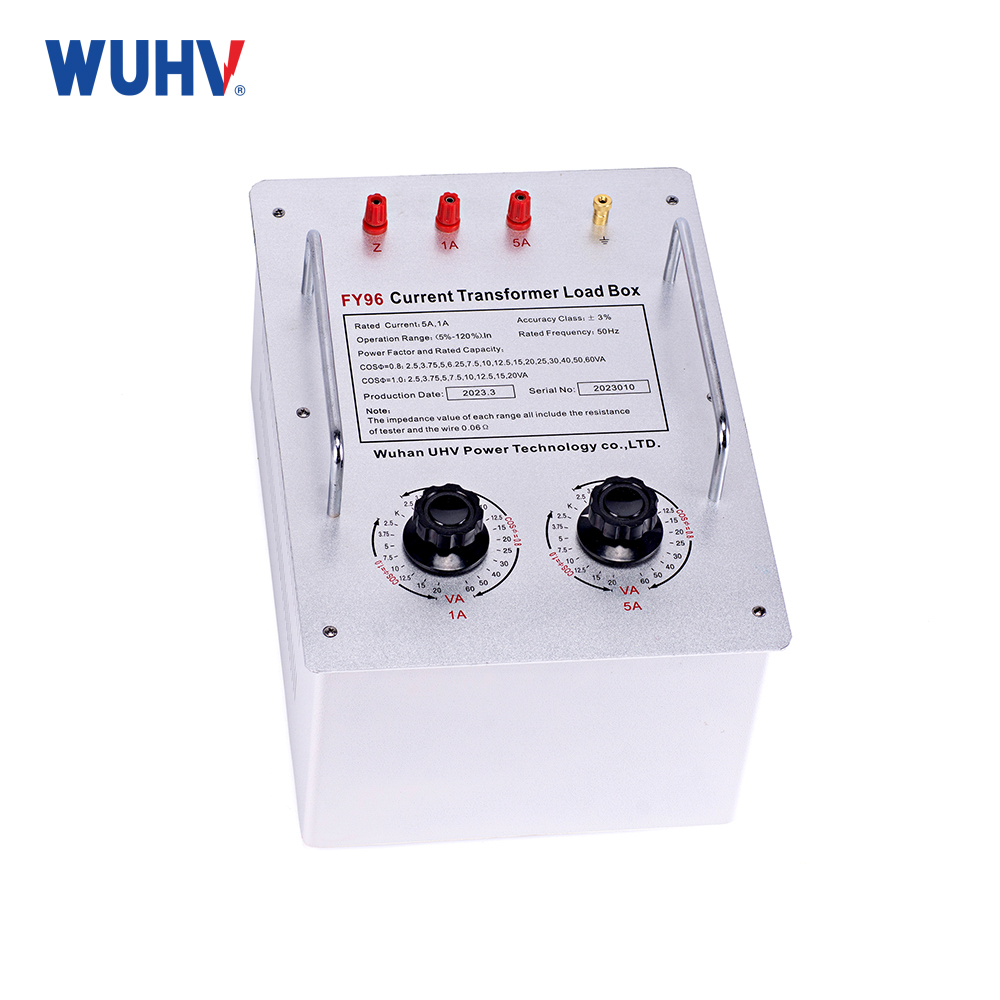

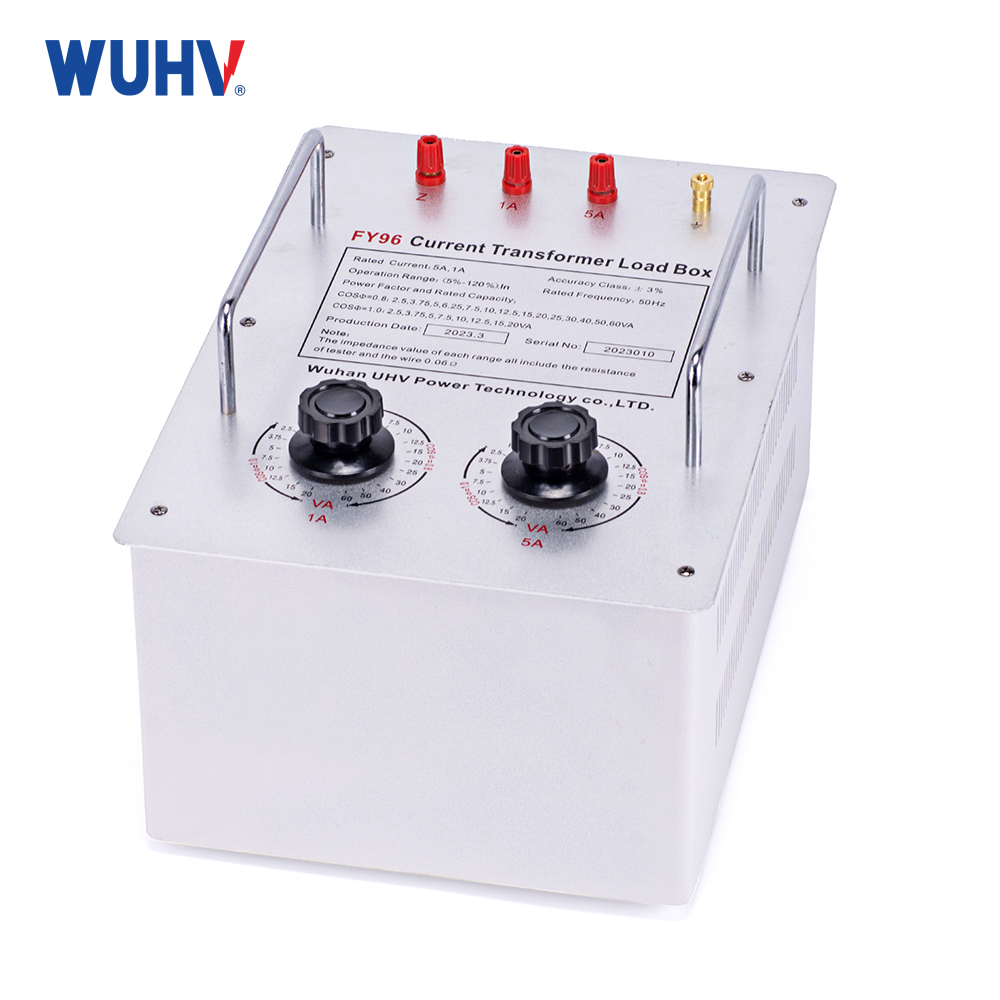

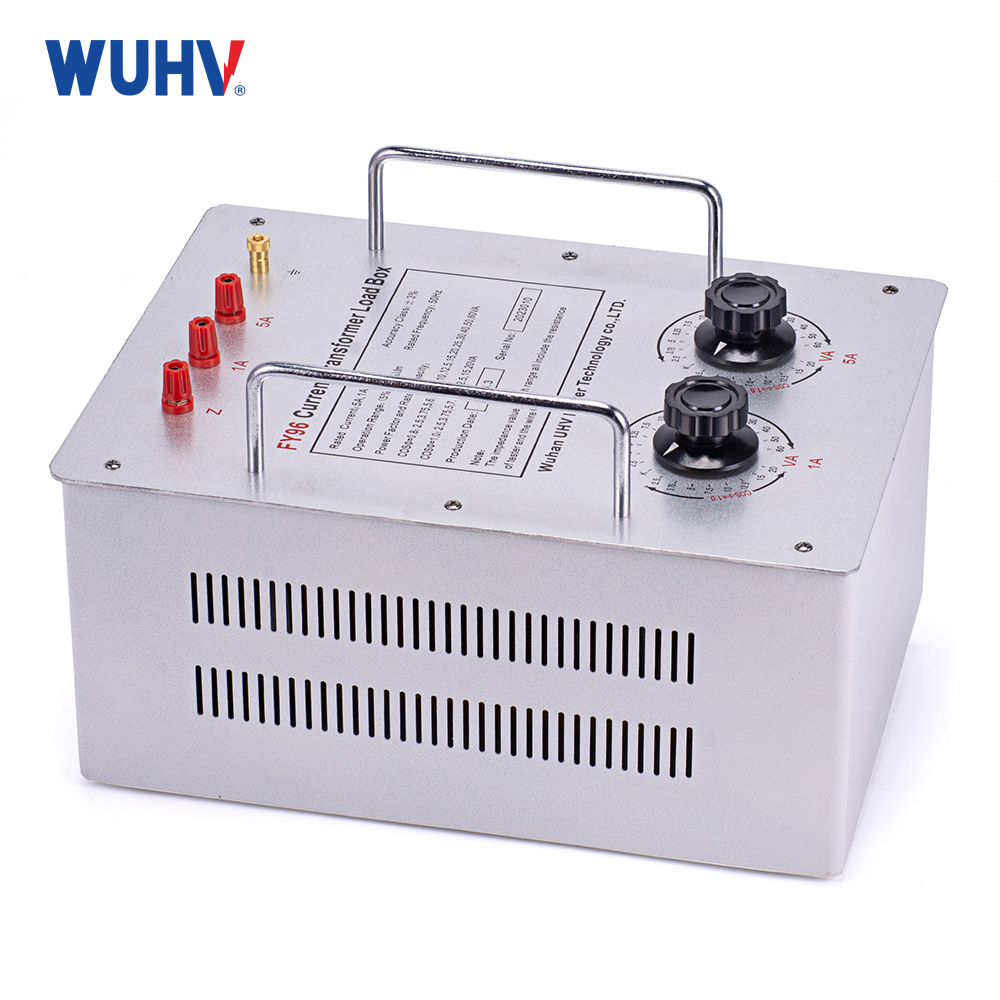

FY96-H Current Transformer Load Box
| environmental conditions | temperature | 15～25℃ |
| humidity | <80%(25℃) | |
| elevation | <1500m | |
| mains frequency | 50Hz | |
| rated capacity | COS0.8: 2.5VA-60VA; COS1.0: 2.5VA-20VA; | |
| current range | 1%～120% | |
| secondary current | 5A（can customize） | |
| power factor | 0.8、1.0 | |
| degree of exactitude | ±3%±0.0025VA | |
| testing voltage | 2kV | |
| boundary dimension(Band dimensions) | 250×350×175mm3 | |
| weight | 8kg |
FY95-H Voltage Transformer Load Box
| environmental conditions | temperature | 15～25℃ |
| humidness | <80%(25℃) | |
| altitude | <1500m | |
| mains frequency | 50Hz | |
| rated capacity | 1.25VA-158.75VA | |
| voltage range | 20%～120% | |
| secondary current | 100/√3V(can customize) | |
| power factor | 0.8、1.0 | |
| degree of exactitude | ±3%±0.05VA | |
| testing voltage | 2kV | |
| boundary dimension(Band dimensions) | 250×350×175mm3 | |
| weight | 8kg |
